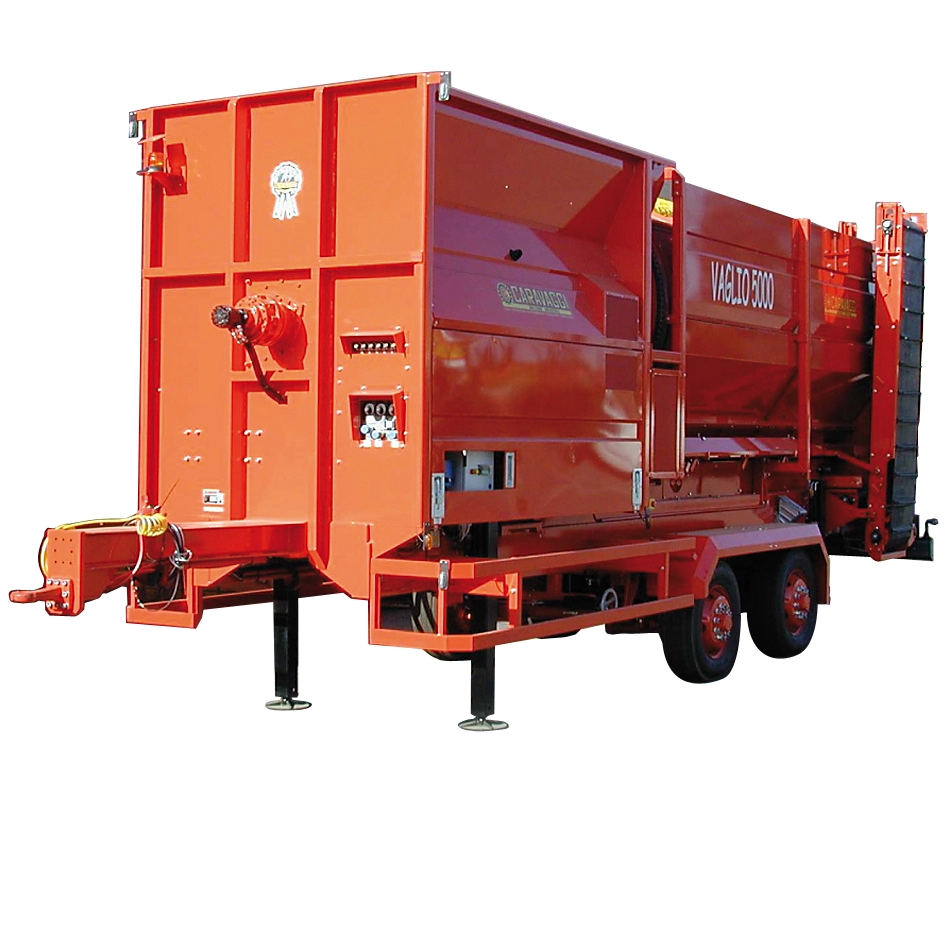

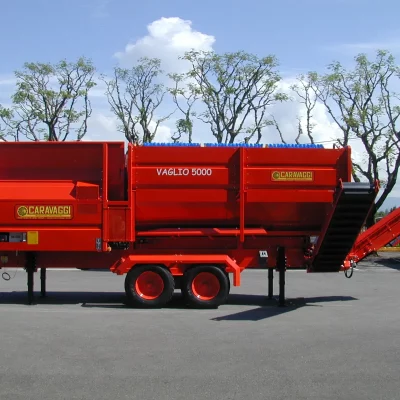

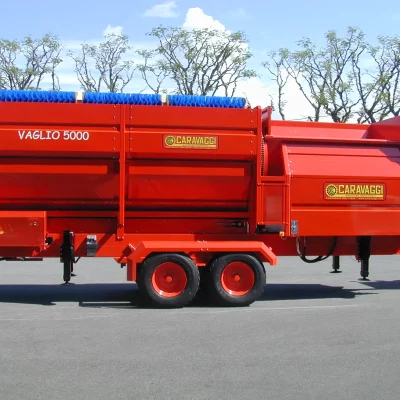

VAGLIO 5000

The VAGLIO5000 is an industrial drum screener from the Caravaggi range, designed primarily for medium to large composting plants.

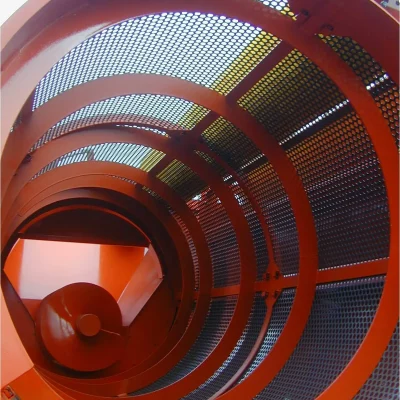

The VAGLIO5000 is equipped with a loading auger that allows the operator to feed the screener in a consistent and uniform manner, preventing overloads. The screening drum of the VAGLIO5000, measuring 5100mm in length with an internal working diameter of 1670mm, features an internal spiral that facilitates the advancement of the material toward the discharge conveyor.

The screening drum is made up of 15 interchangeable panels, with hole sizes that can vary according to customer requirements.

The processed material is divided into two fractions: the screened material falls by gravity onto the conveyor belt system and is discharged to the side, while the coarse material is discharged at the rear.

In addition to diesel and electric versions, the VAGLIO5000 is also available with tractor PTO, for which a power output of 180hp is recommended to fully exploit the machine’s capabilities.

The VAGLIO5000 drum screener is supplied with the following standard equipment:

• Loading hopper with a capacity of 5m3
• 3000mm loading auger with adjustable speed
• Interchangeable screening panels
• Agricultural chassis without brakes
• Mechanical stabilizers

As an alternative, the VAGLIO5000 can be supplied with an agricultural twin-axle chassis with air brakes or with high-speed chassis approved for 80 km/h for road traffic.

The VAGLIO5000 can also be supplied with various accessories according to the customer’s needs:

• Automatic centralised greasing with pump
• Hydraulic self-propelled
• Magnet

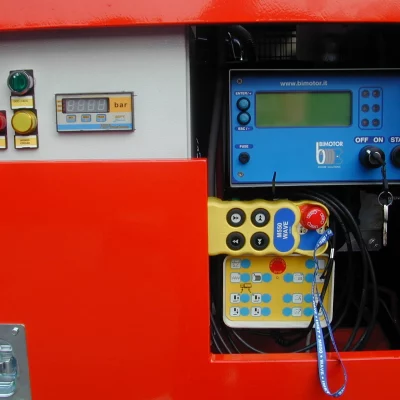

• Remote control
• Radiator cleaning FLEXXAIRE
• Hydraulic stabilizers
