Bio-shredders and chippers
TRX 50

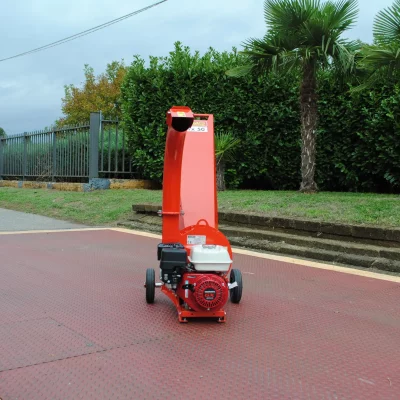

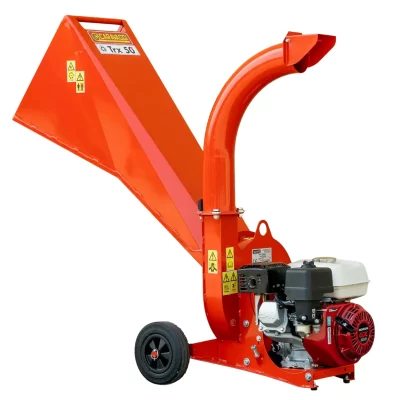

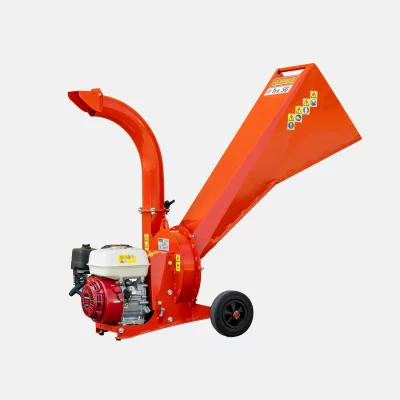

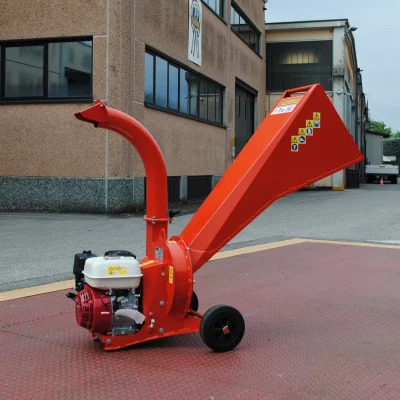

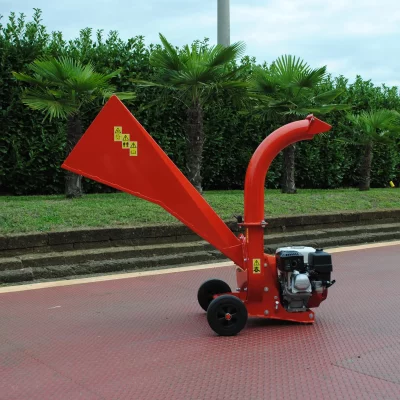

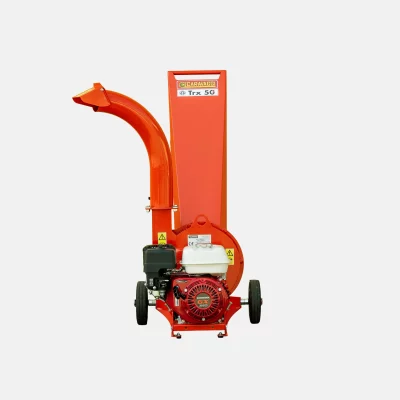

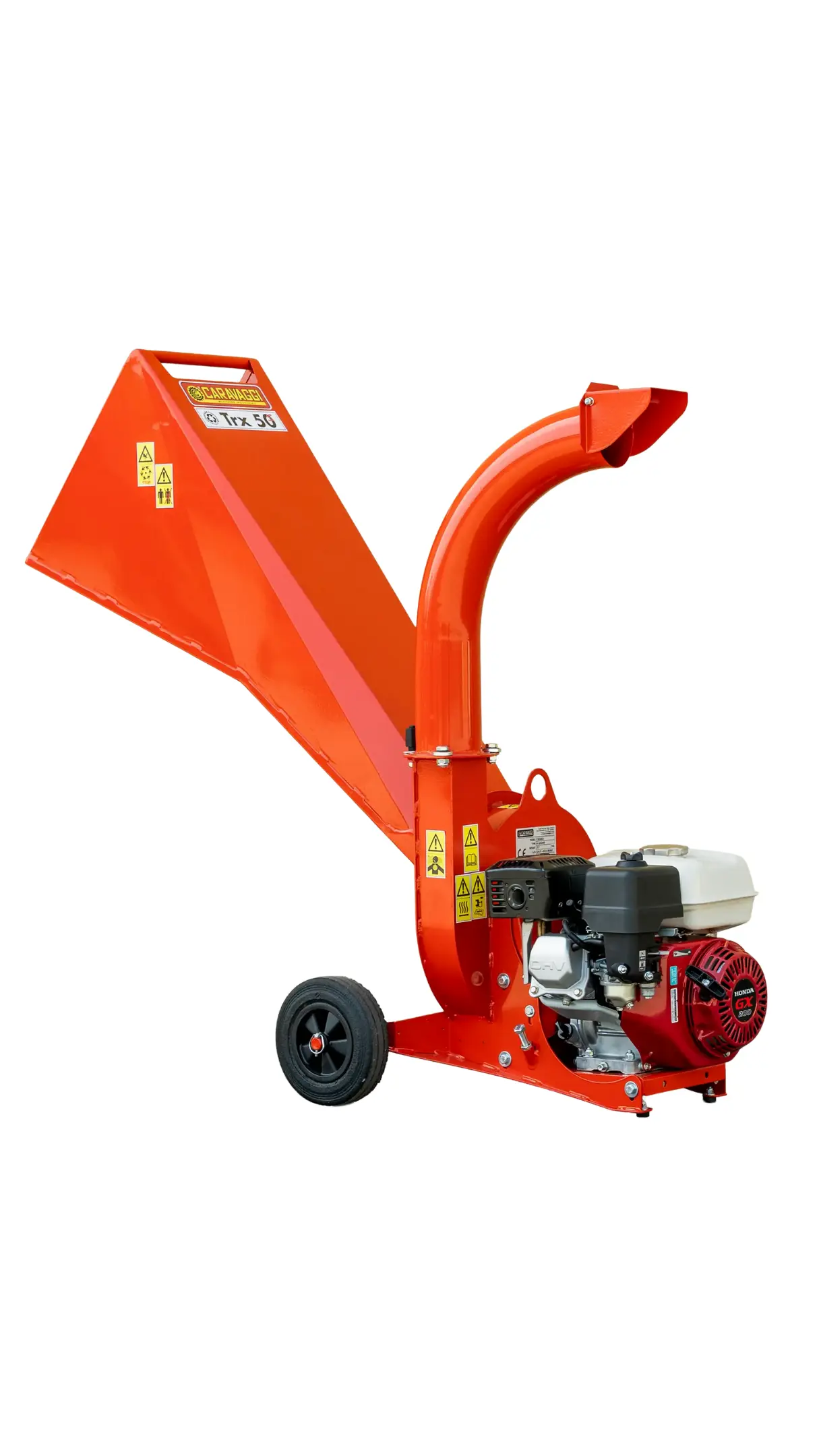

Bio-shreddersThe TRX50 model is a domestic chipper from the Caravaggi range.
It features a cutting system consisting of a single-blade cutting disc, assisted by 4 fans that aid in discharge. The TRX50 chipper is equipped with a belt transmission, which reduces stress on the engine shaft and rotor.
Unlike the BIO50–55 models, the TRX50 chipper features a swivelling discharge pipe with a height of 1100 mm.
The TRX50 chipper is available with either petrol engines of various power levels or an electric motor:
- Petrol engine HONDA GP160 – 5hp
- Petrol engine HONDA GX160 – 5hp
- Petrol engine HONDA GX200 – 6 hp
- Electric motor 220V – 2,2 kW
In addition to the petrol and electric versions, the TRX50 is also available in a version for two-wheel tractors, with a recommended power range between 5 and 10hp.
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GP160
5 hp
Petrol HONDA GX160
5 hp
Petrol HONDA GX200
6 hp
Electric 2,2 kW – 220V
3 hp
Other characteristics
Cutting disc
310×6
Blades
1 or 2
Hammers
–
Counterblades
1
Max cutting diameter (mm)
50
Loading hopper (mm)
440×295
Feeding opening (mm)
140×120
Loading height (mm)
790
Unloading height (mm)
1100
Hydraulic feed roller
NO
Belt transmission
YES
Screen
NO
Average productivity (m3/h)
1
