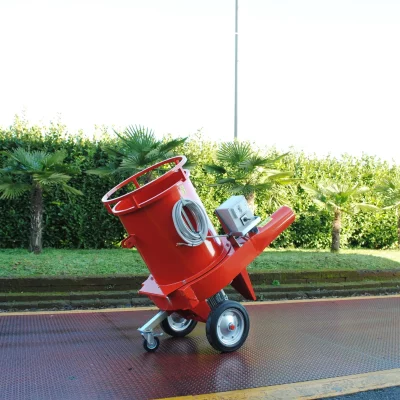

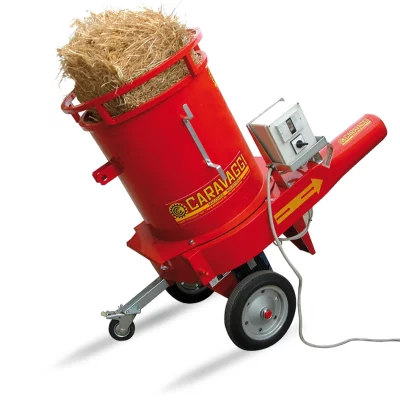

TPF 15
Straw choppersThe TPF15 is a shredder from the Caravaggi range.
It is designed for biomass management in agriculture and for processing animal litter.
This machine is ideal for shredding and chopping hay and straw, optimizing the storage process and improving its use in the livestock sector.
The TPF15 model is available with different engine options to meet operators’ various needs:

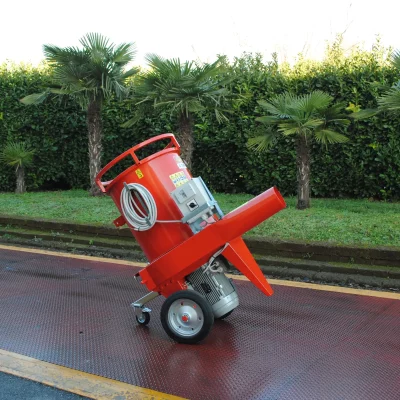

- Three-phase electric motors with power ranging from 5,5 kW to 15 KW

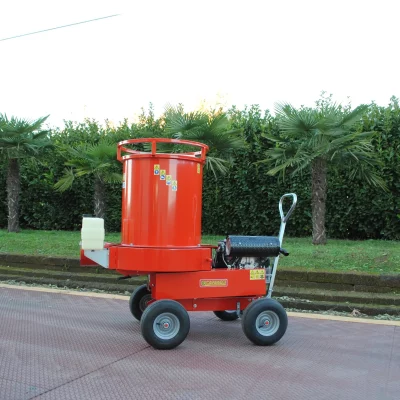

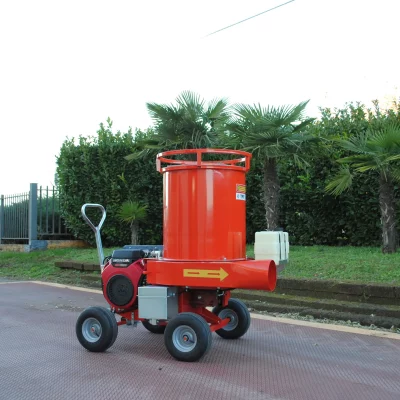

- Petrol engine HONDA GX630

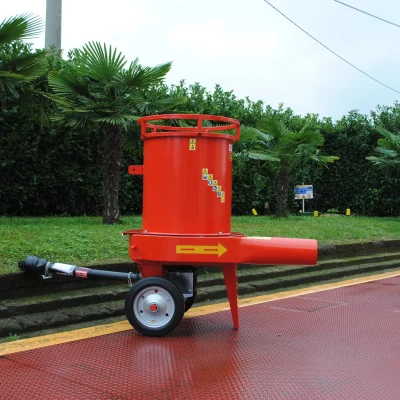

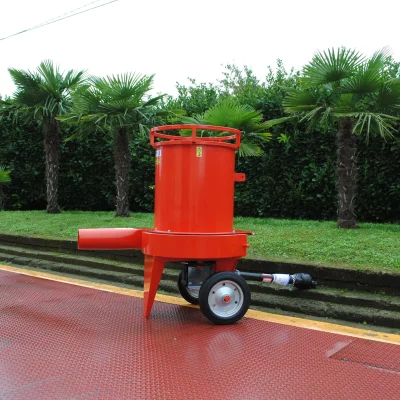

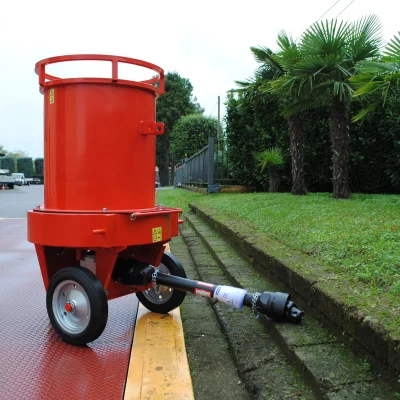

- Tractor PTO for 20-40hp tractors
The shredding system of the TPF15 consists of a double-disc rotor with a diameter between 570 and 585 mm, 24 blades, a pair of flakers and a pair of string cutters to cut the twine of bales.
Depending on the operator’s needs, the output material size can be adjusted. This is made possible by a refining screen, available in various sizes, from 8mm to 70mm.
Download technical data sheet
Technical characteristics
Engine
Electric 380V 5,5 kW
7,5 hp
Electric 380V 7,5 kW
10 hp
Electric 380V 9 kW
12,5 hp
Electric 380V 11 kW
15 hp
Electric 380V 15 kW
20 hp
Petrol HONDA GX630
20 hp
PTO tractor 30 – 60 hp
–
Other characteristics
Rotor diameter (mm)
570-585
Feed opening (mm)
600
Blades
24
Flakers
2
String cutter
2
Loading height (mm)
1400
Discharge height (mm)
750
Exhaust pipe diameter (mm)
160
Refining screen (mm)
8-70
Average productivity (m3/h)
6
