Windrow turners

RIVO 300

Windrow turners

The RIVO300 is the largest model in Caravaggi’s range of compost turners.

It is characterised by an important working capacity, in fact it can process compost heaps of 2700mm width and 1400mm height.

The RIVO300 features a sturdy steel frame, allowing for a maximum working width of 3000mm and a height of 1600mm. At the core of the machine is a rotor with a diameter of 780mm, equipped with 58 blades that facilitate the mixing of compost windrows.

The RIVO300 is available in a tractor PTO version, requiring a recommended power of 100-120hp, and a self-propelled tracked version with an independent diesel engine.

For the self-propelled version, various engine options are available, ranging from 55 to 75hp, all compliant with the most stringent emissions regulations.

Both versions are equipped with a 1000-liter water tank and nozzles positioned above the rotor, enabling the material to be moistened during processing to improve the quality of the final compost.

Additionally, the diesel-powered version of the RIVO300 comes with an operator seat and an independent hydraulic system with a cooling radiator. Alternatively, customers can opt for a closed cabin with a seat for greater operator comfort and protection.

Download technical data sheet

Technical characteristics

Engine
Diesel DOOSAN D18 – Stage V

55 hp

Diesel DOOSAN D24 – Stage V

75 hp

Tractor PTO 90 – 150 hp

Other characteristics
Rotor diameter (mm)

780

Rotor width (mm)

3000

Blades

29+29

Pile width (mm)

3000

Pile height (mm)

1400

Max. working width (mm)

3000

Max. working height (mm)

1600

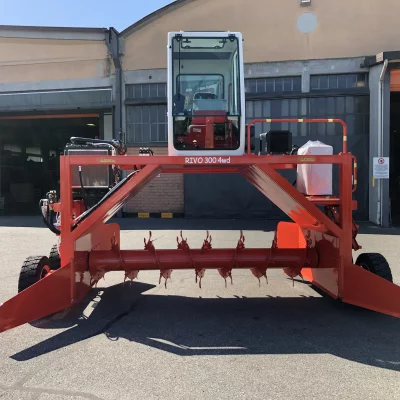

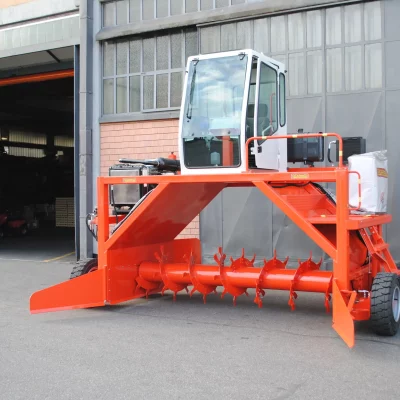

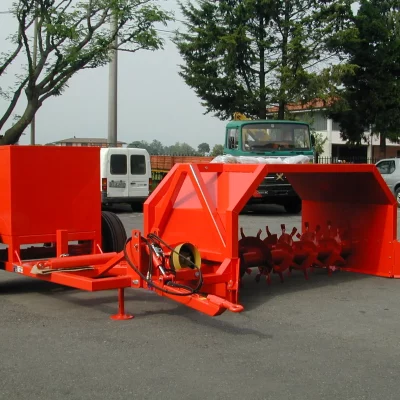

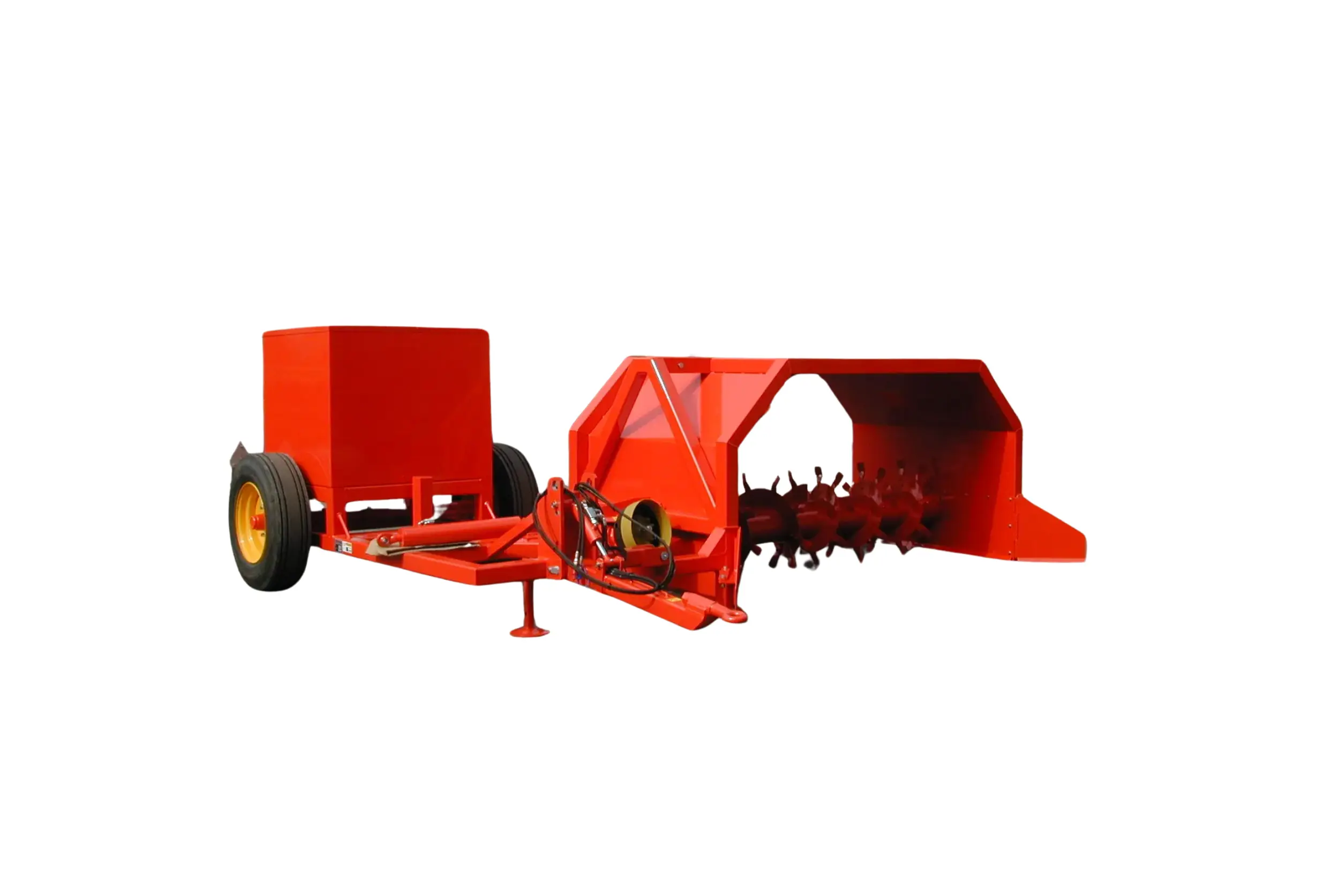

Product pictures
