Windrow turners

RIVO 280

Windrow turners

The RIVO280 is the smallest model in Caravaggi’s range of compost turners.

It is characterised by an important working capacity; in fact, it can process compost heaps of 2500mm in width and 1200mm in height.

The RIVO280 features a sturdy steel frame, allowing for a maximum working width of 2800mm and a height of 1400mm. At the core of the machine is a rotor with a diameter of 780mm, equipped with 48 blades that facilitate the mixing of compost windrows.

The RIVO280 is available in a tractor PTO version, requiring a recommended power of 80–100hp, and a self-propelled tracked version with an independent diesel engine.

For the self-propelled version, various engine options are available, ranging from 55 to 75hp, all compliant with the most stringent emissions regulations.

Both versions are equipped with a 1000-liter water tank and nozzles positioned above the rotor, enabling the material to be moistened during processing to improve the quality of the final compost.

Additionally, the diesel-powered version of the RIVO280 comes with an operator seat and an independent hydraulic system with a cooling radiator. Alternatively, customers can opt for a closed cabin with a seat for greater operator comfort and protection.

Download technical data sheet

Technical characteristics

Engine
Diesel DOOSAN D18 – Stage V

55 hp

Diesel DOOSAN D24 – Stage V

75 hp

Tractor PTO 70 – 120 hp

Other characteristics
Rotor diameter (mm)

780

Rotor width (mm)

2800

Blades

24+24

Pile width (mm)

2500

Pile height (mm)

1200

Max. working width (mm)

2800

Max. working height (mm)

1400

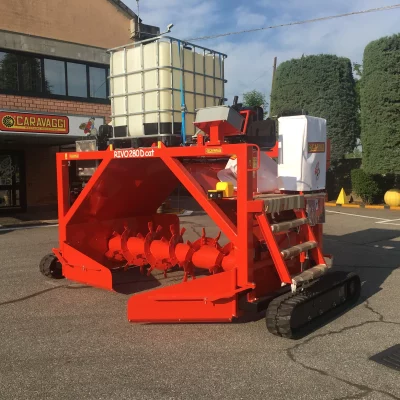

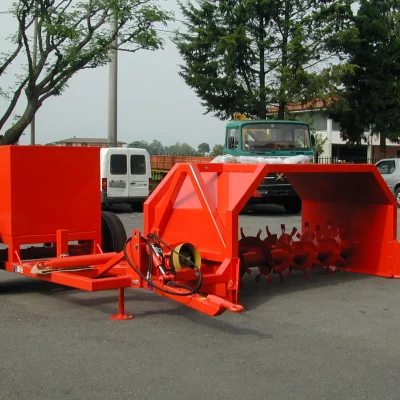

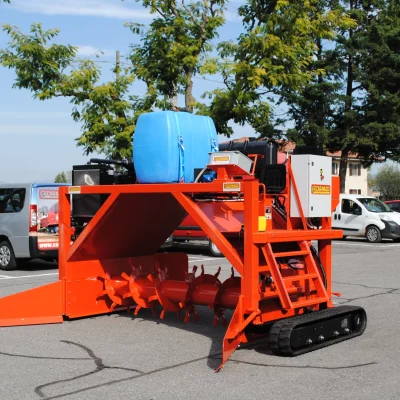

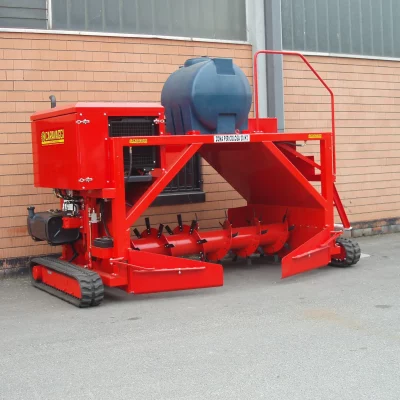

Product pictures
