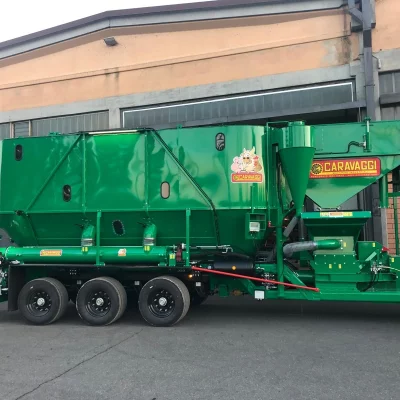

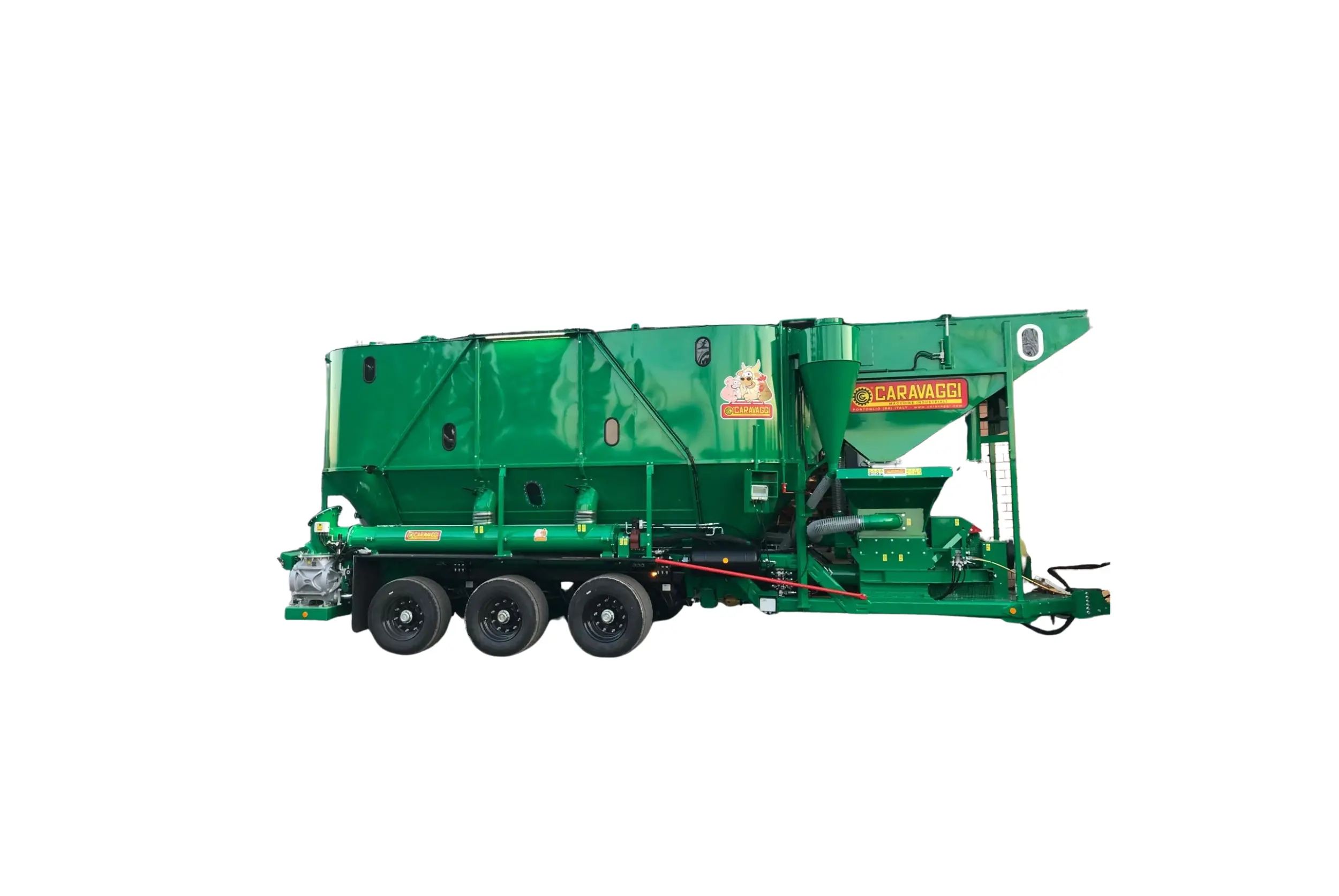

MMM 16T 170M

It is designed to meet the needs of large-scale farms that want to produce feed in-house, with a finished product capacity of up to 16 t/h.

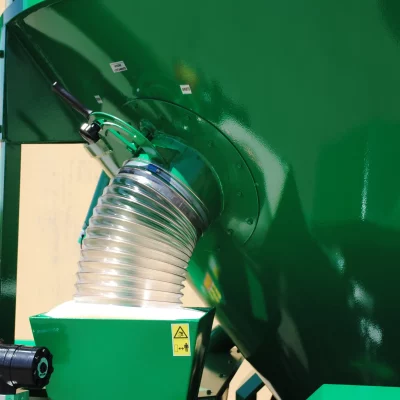

The MMM16T-170M mill mixer consists of a mill equipped with 172 hammers for processing grain. The mill hopper is fitted with magnets to remove any ferrous materials from the grain. The mill is also equipped with a vacuum fan and a dust cyclone, which significantly reduce dust generated during the grinding process.

Once ground, the grain is transferred via an auger to the mixing tank, which has a capacity of 25 m³ and is equipped with four augers featuring two homogenizing knives to ensure thorough mixing of the grain. After mixing, the material is discharged into silos via a 250-220mm diameter auger that is 8.9 meters long, allowing storage in silos up to 9.5 meters high.

The MMM16T-170M mill mixer is supplied with the following equipment:

• 172-hammer mill
• 25 m³ mixing tank
• Rear auger for adding additives

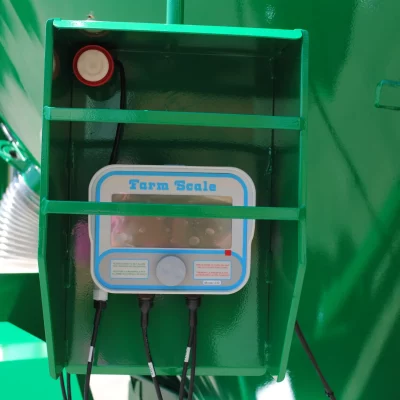

• Weighing system

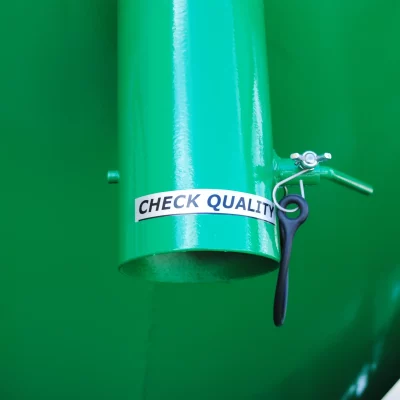

• Outlets for sampling
• Unloading auger Ø 250-220 with length 8.9m
• Hydraulic opening above mixing tank for adding additive with telescoping
• SIDRA dual-axle trolley with oil braking
• Two steered axles and rear lock

In addition to the standard equipment, the MMM16T-170M can be supplied with the following accessories:

• Loading hopper for telescopic
• Hydraulic cover for mill hopper
• Rear hopper for adding additives with big bag or telescopic
• Air braking
• Pneumatic discharge system
