Leaf vacuum

JUMBO

Leaf vacuum

The JUMBO is a leaf vacuum from the Caravaggi range.

It is designed to effectively collect leaves, debris and other particles from surfaces such as gardens, parks, paths and paved areas.

Indispensable in the field of green maintenance and outdoor cleaning, the JUMBO guarantees fast and efficient management of plant residues, helping to keep outdoor spaces clean and tidy throughout the year.

The JUMBO leaf vacuum blower from the Caravaggi range is available with two different engines:

  • Petrol engine HONDA GX390
  • Petrol engine VANGUARD 18

Both engines have ripping start, however, for greater operator comfort, an electric start version is also available.

The suction system consists of a 4-blade turbine and a 6-metre long suction hose, allowing the operator to cover a wide range of action, increasing comfort and versatility.

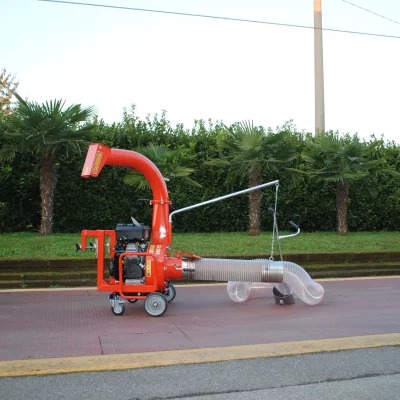

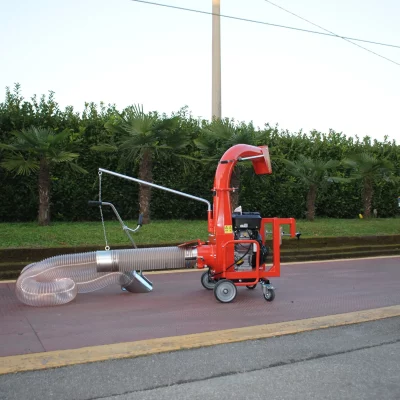

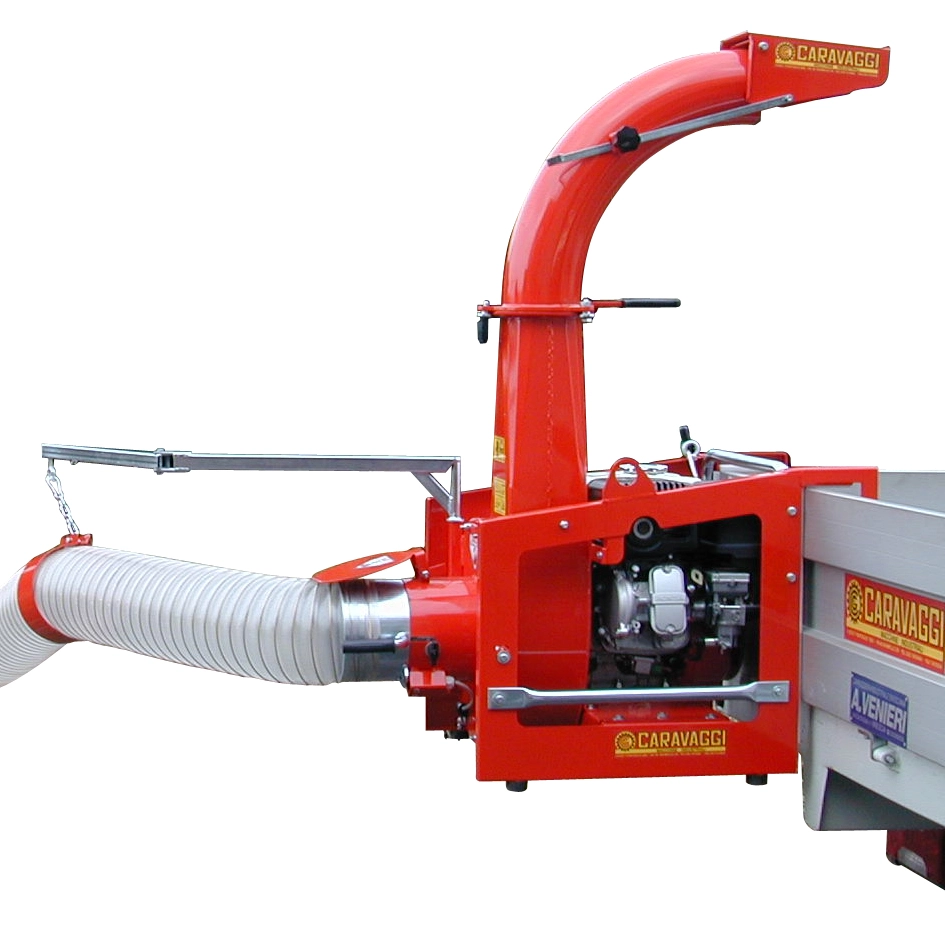

The standard version of the JUMBO allows the leaf vacuum to be mounted on the side of a van. Alternatively, it can be supplied on a 4-wheel chassis for manual handling or on a high-speed chassis so that it can be attached to the tow bar of a van.

The 270° swivel discharge with deflector allows the optimal distribution of leaves in the trailer used by the operator.

Download technical data sheet

Technical characteristics

Engine
Petrol HONDA GX390

11,5 hp

Petrol VANGUARD 18

5 hp

Other characteristics
Turbine diameter (mm)

400

Turbine blades

4

Suction hose diameter (mm)

200

Suction hose length (mm)

6000

Dimensions
Width (mm)

1300

Length (mm)

800

Height (mm)

1500

Weight (kg)

170

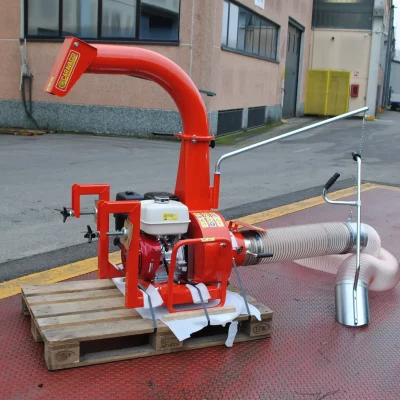

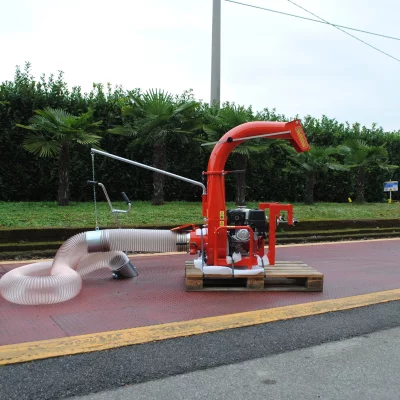

Product pictures
