CIPPO 25

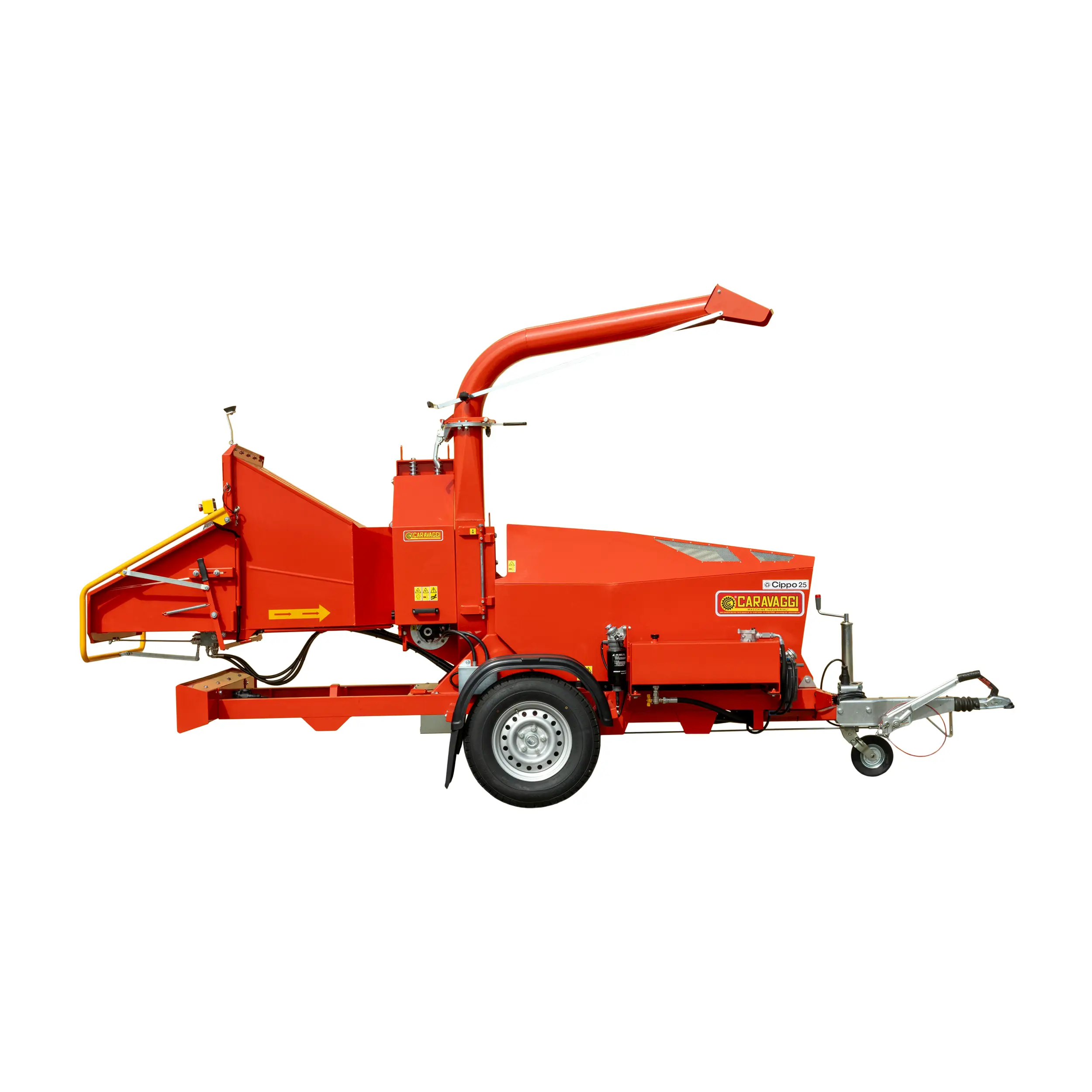

Bio-shreddersThe CIPPO25 model is the largest disc chipper in the Caravaggi range.
It features a large feed opening that allows chipping material up to 250mm in diameter.
Both in the electric and diesel versions, the CIPPO25 chipper is equipped with engines that comply with the most stringent emission standards (IE4 – Stage V).
In addition to the electric and diesel models, the CIPPO25 chipper is also available in a tractor PTO version, for which a power range of 75–90hp is recommended to fully exploit its potential.
The CIPPO25 chipper comes with the following standard equipment:
- Electronic control NO-STRESS system to prevent overloading of the cutting system and engine
- Centralized greasing system for easy and fast routine maintenance of the chipper
- Speed control system of the feeding rollers to adjust the size of the wood chips
- Agricultural chassis without brakes

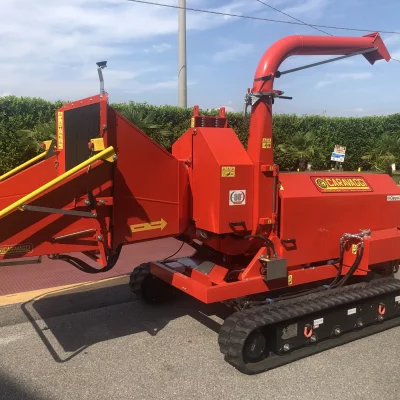

As an alternative, the CIPPO25 chipper can be supplied with high-speed chassis or a tracked undercarriage, which can be operated via wire or remote control.

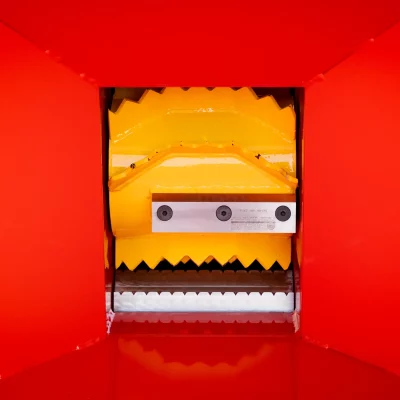

Moreover, to obtain larger wood chips (15–20 mm), the CIPPO25 chipper can be equipped with a 3-blade cutting disc, featuring blades only 90mm wide compared to the standard 249mm ones.
Download technical data sheet
Technical characteristics
Engine
Electric 380 V
20 hp
Diesel DOOSAN D18 3-cyl
22 hp
Diesel DOOSAN D24 4-cyl
25 hp
PTO tractor
25 hp
Other characteristics
Cutting disc (mm)
720×28
Blades
3
Counter-blades
1
Extractable counterblade
NO
Max cutting diameter (mm)
250
Loading hopper (mm)
1000×910
Feeding opening (mm)
350×250
Loading height (mm)
940
Hydraulic feed roller
2
Electronic control NO-STRESS
YES
Roller speed adjustment system
YES
Roller rotation direction control
YES
Centralized greasing
YES
Unloading height (mm)
2300
Average productivity (m3/h)
17
