CIPPO 15
Bio-shreddersThe CIPPO15 model is a disc chipper from the Caravaggi range.
It features a large feed opening that allows chipping of material up to 150mm in diameter. In versions with high-speed chassis (both petrol and diesel), the CIPPO15 chipper has a total weight under 750 kg, allowing it to be driven with a B licence only.
In all motorized versions, the CIPPO15 chipper is equipped with engines that comply with the strictest emission standards (IE4 – Stage V).
In addition to the petrol, electric, and diesel versions, the CIPPO15 chipper is also available in a tractor PTO version, for which a 40–60 hp tractor is recommended to fully exploit its capabilities.
The standard equipment of the CIPPO15 chipper includes:
- Chipping disc with 2 reversible blades
- Speed control system of the feeding rollers for adjusting the size of the wood chips
- Agricultural chassis without brakes
The CIPPO15 chipper can also be equipped with the electronic NO-STRESS device and a high-speed chassis.

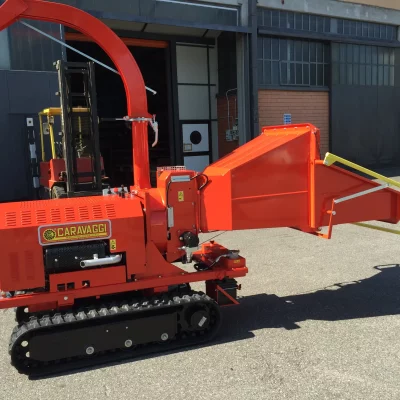

As an alternative, the CIPPO15 chipper can be supplied with a tracked undercarriage, operated via wire or remote control.
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GX690
22 hp
Petrol HONDA iGX800
25 hp
Diesel KOHLER KDW1003
25 hp
Electric 15 kW
20 hp
PTO tractor 40 – 60 hp
–
Other characteristics
Cutting disc (mm)
500×18
Blades
2
Counter-blades
1
Extractable counterblade
NO
Max cutting diameter (mm)
150
Loading hopper (mm)
700×800
Feeding opening (mm)
230×180
Loading height (mm)
800
Hydraulic feed roller
2
Electronic control NO-STRESS
Optional
Roller speed adjustment system
YES
Roller rotation direction control
YES
Centralized greasing
NO
Unloading height (mm)
2400
Average productivity (m3/h)
12

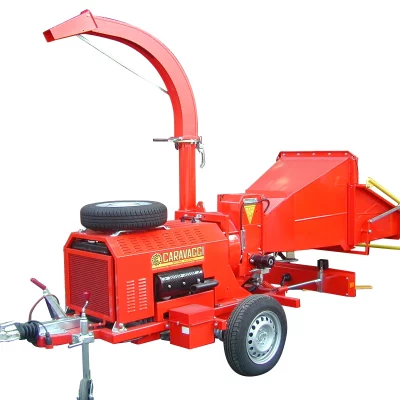

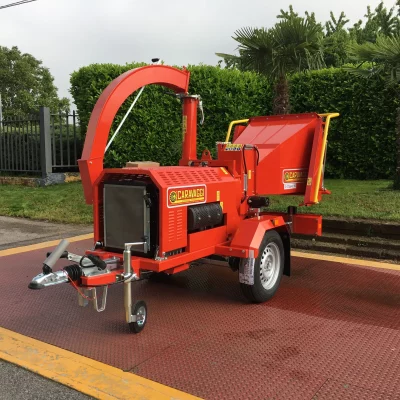

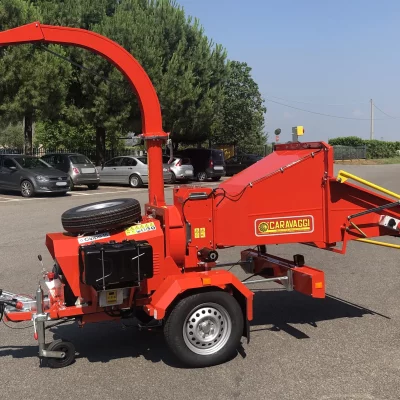

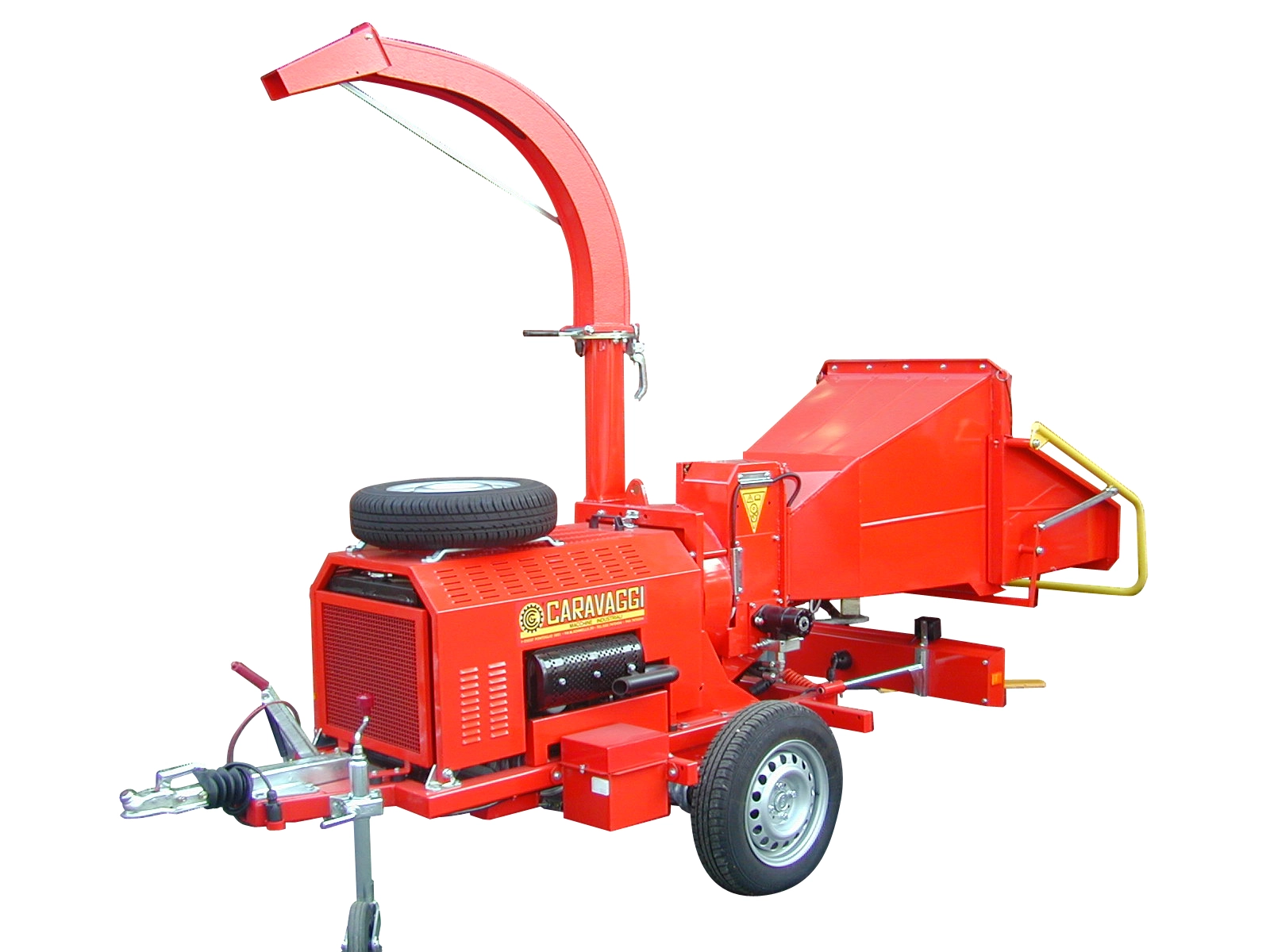

Product pictures
