BIO 90

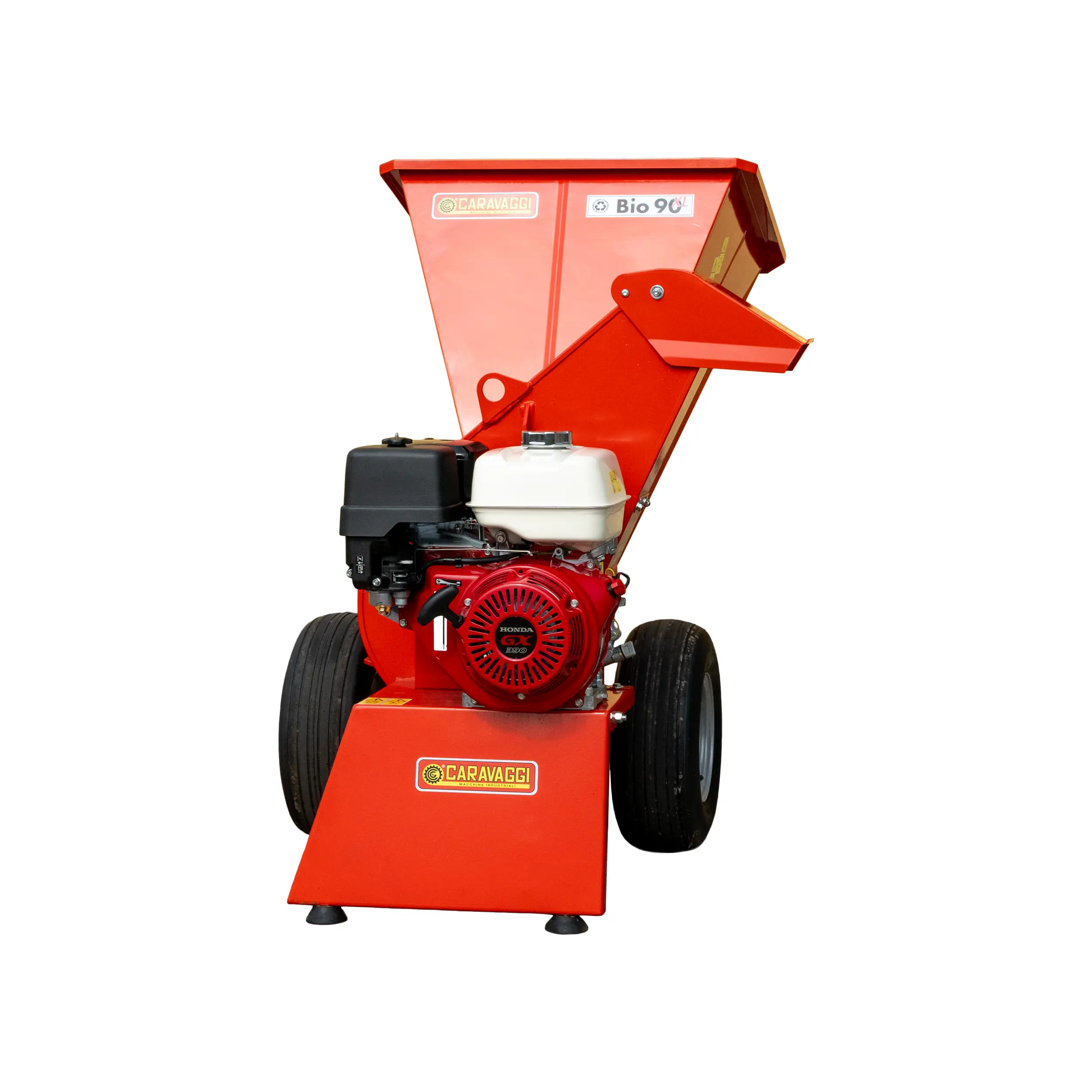

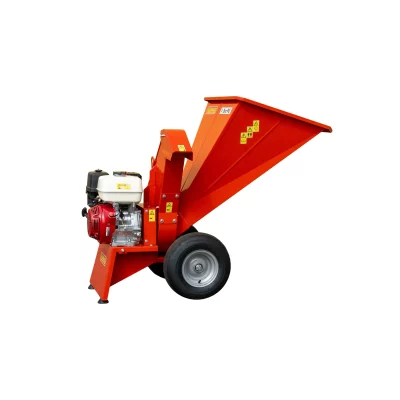

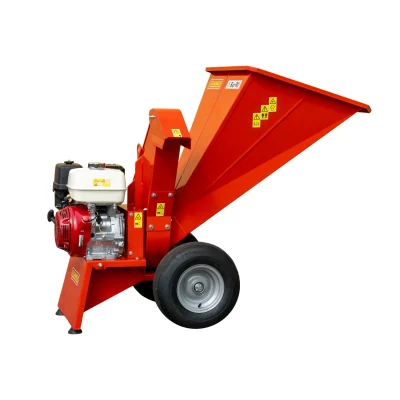

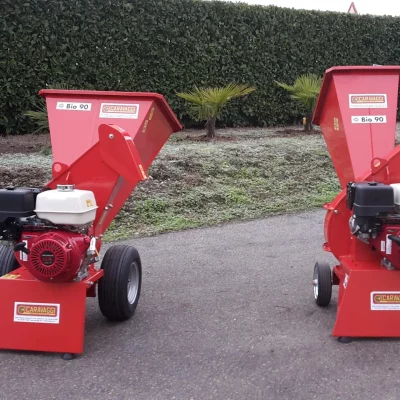

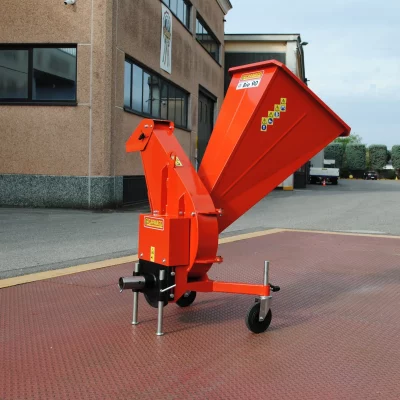

Bio-shreddersThe BIO90 model is the largest domestic chipper in the Caravaggi range with a maximum cutting capacity of 90 mm in diameter.
It features a mixed cutting system, consisting of a double-blade cutting disc, assisted by 6 hammers that further shred the material and aid in discharge. The BIO90 chipper can be equipped with a screen, allowing the operator to achieve uniform wood chips.

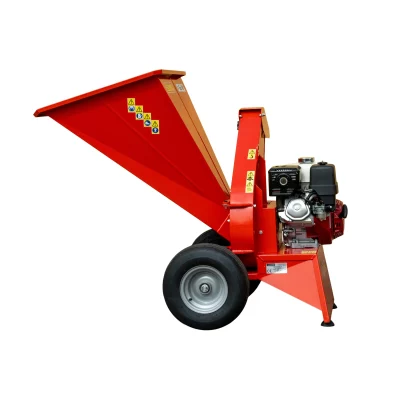

In addition to the standard version, the BIO90 chipper is also available with an enlarged hopper, making it easier for the operator to process bulky material. The XL version also features larger wheels, making the chipper easier to transport.
The BIO90 chipper is available in various versions:

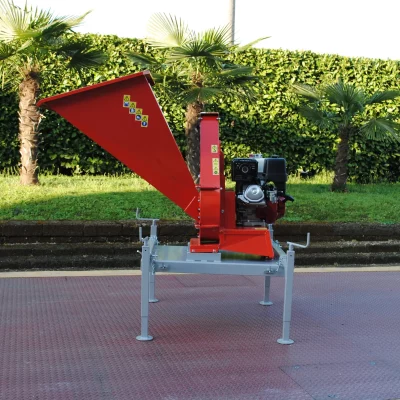

- Petrol engine HONDA GX270 – 8,5hp
- Petrol engine HONDA GX390 – 11,5hp

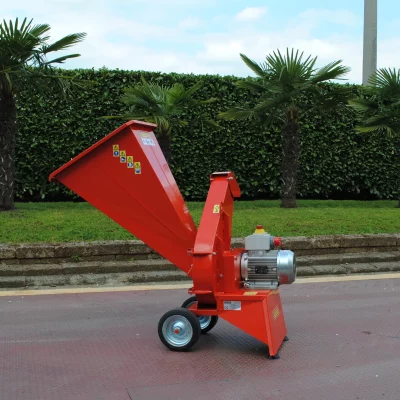

- Electric motor 7,5 kW

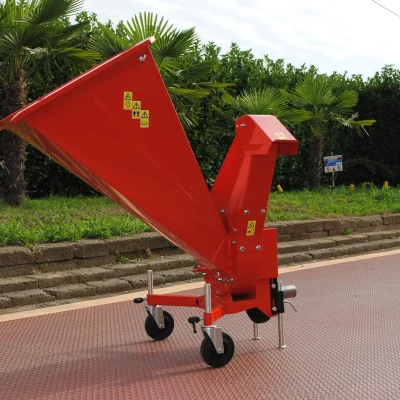

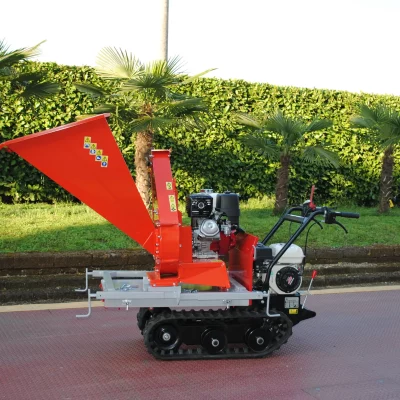

- For two-wheel tractor with a power range of approx. of 5 – 12hp

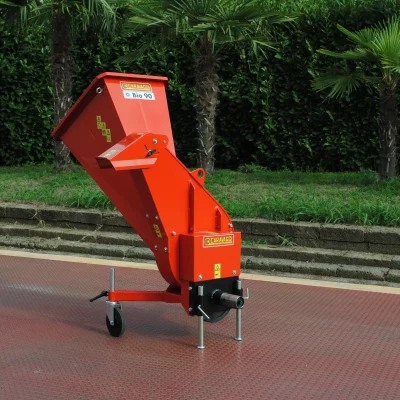

- For tractor PTO (power take-off) with a power range of approx. 15 – 25hp
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GX270
5 hp
Petrol HONDA GX390
11 hp
Electric 2,2 kW – 220V
3 hp
Two-wheel tractor 5-12hp
–
Tractor PTO 15-25hp
–
Other characteristics
Cutting disc
340×6
Blades
2
Hammers
6
Counterblades
2
Max cutting diameter (mm)
90
Loading hopper (mm)
610×395
Loading hopper XL (mm)
650×600
Feeding opening (mm)
160×140
Loading height (mm)
1030
Hydraulic feed roller
NO
Belt transmission
YES
Screen
YES
Average productivity (m3/h)
3
