BIO 80

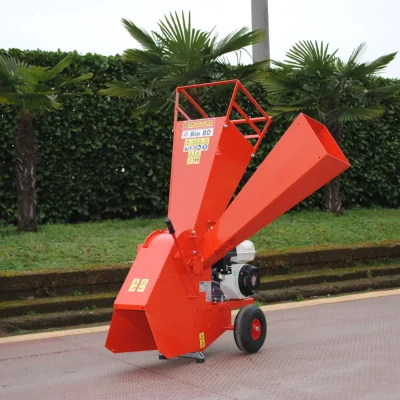

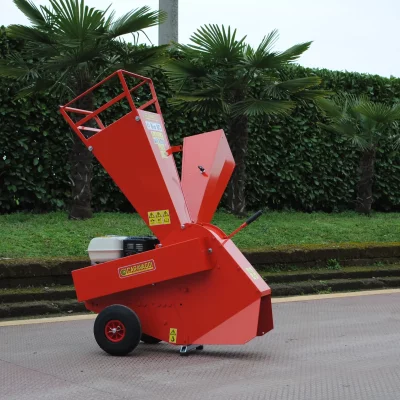

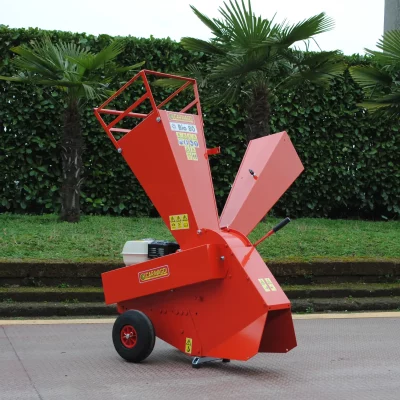

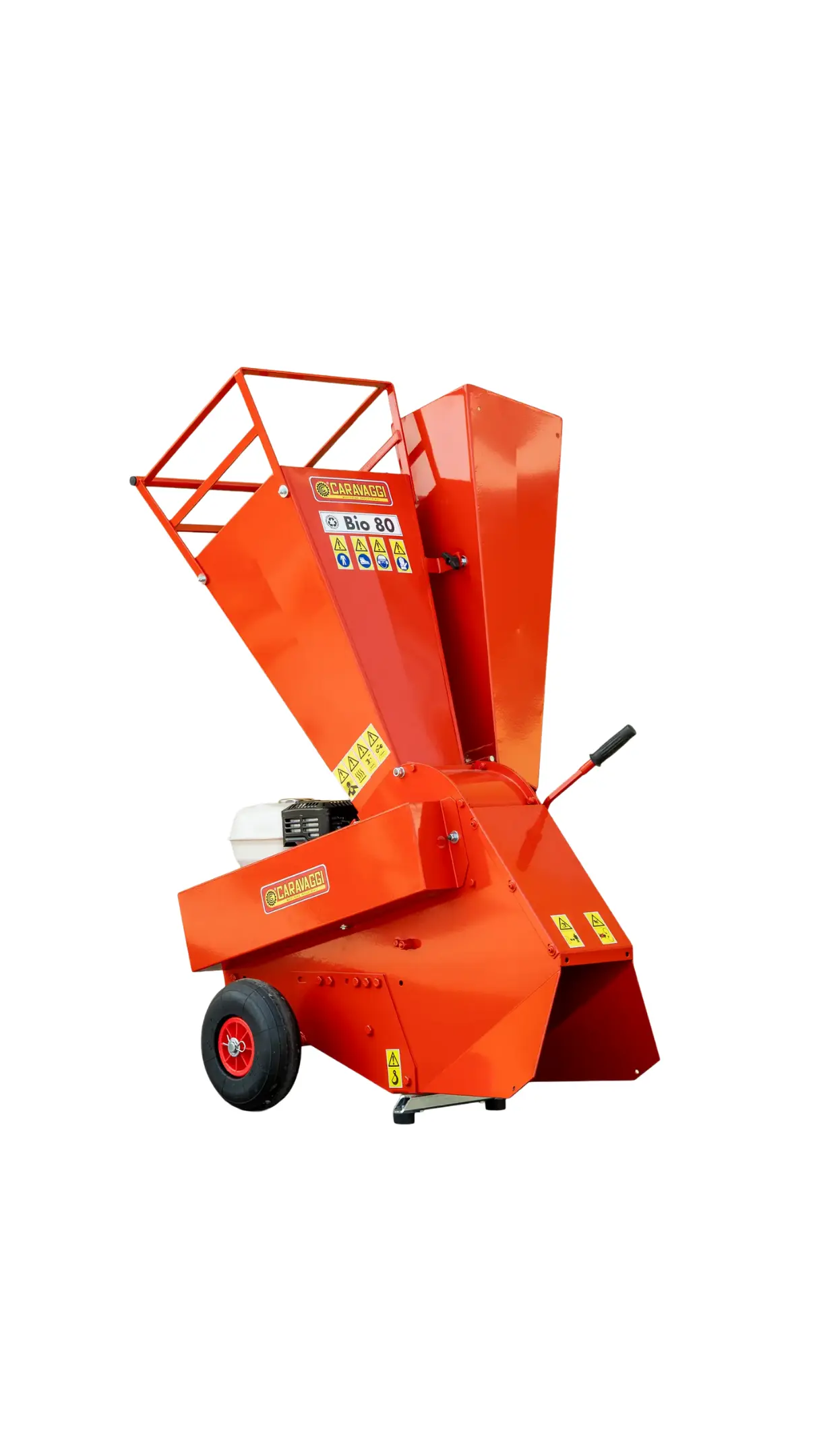

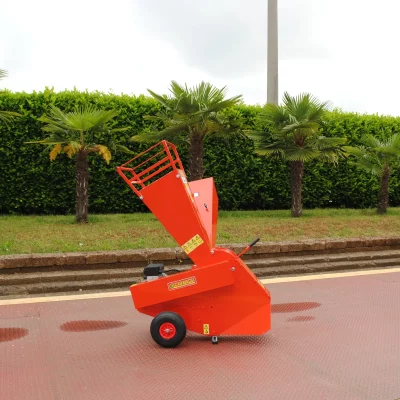

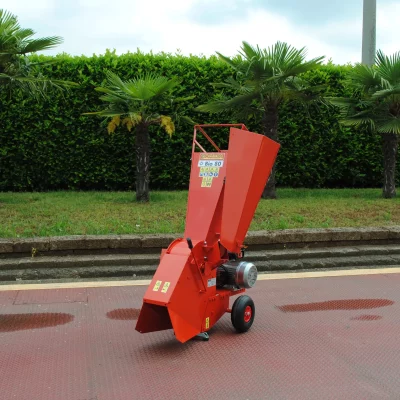

Bio-shreddersThe BIO80 model is a bio-shredder from Caravaggi's domestic range.
It features a dual cutting system, consisting of a drum equipped with floating hammers for shredding material and a disc with a blade for wood chipping.
The BIO80 bio-shredder is equipped with an interchangeable refining screen, allowing the operator to adjust the size of the discharged material and ensure uniform output.
The BIO80 is available with various electric or petrol engines:

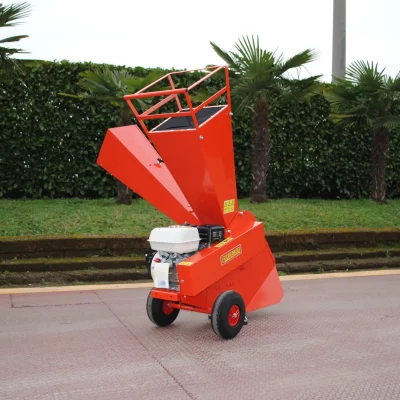

- Petrol engine HONDA GX160 – 5hp
- Petrol engine HONDA GX200 – 6hp
- Petrol engine HONDA GX270 – 8,5hp

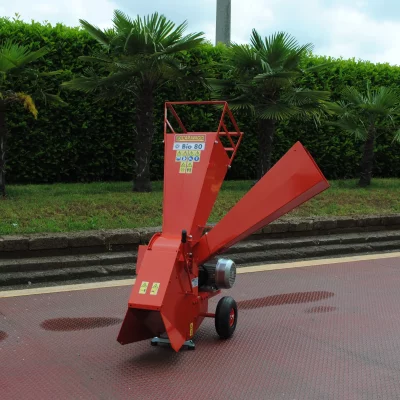

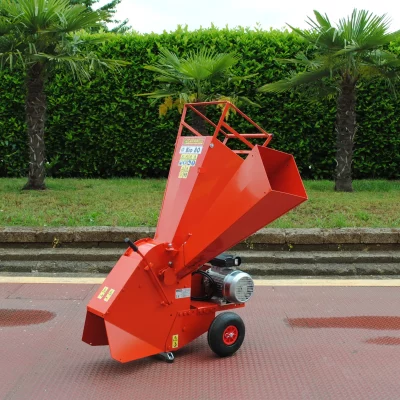

- Electric motor 2,2 kW – 220V – 3hp
- Electric motor 2,9 kW – 380V – 4hp

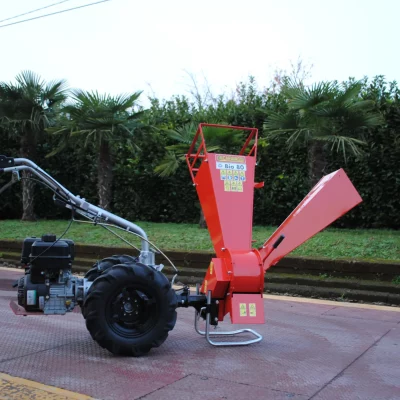

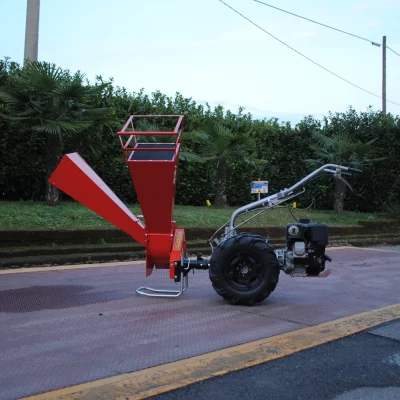

In addition to the motorized versions, the BIO80 is also available in a version for two-wheel tractors with power outputs ranging from 5 to 10hp.
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GX160
5 hp
Petrol HONDA GX200
6 hp
Petrol HONDA GX270
8,5 hp
Electric 2,2 kW – 220V
3 hp
Electric 2,9 kW – 380V
4 hp
Two-wheel tractor 5-10 hp
–
Other characteristics
Hammers
27
Blades
1
Rotor width (mm)
155
Rotor diameter (mm)
290
Max cutting diameter (mm)
60
Loading hopper (mm)
300×300
Feeding opening (mm)
170×140
Interchangeable refining screen
YES
Hydraulic feed roller
NO
Average productivity (m3/h)
2-3
