Bio-shredders and chippers
BIO 660

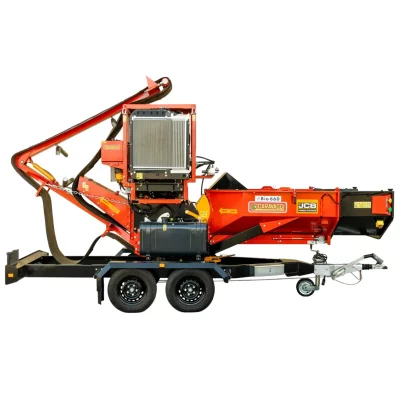

Bio-shreddersThe BIO660 model is a professional bio-shredder from the Caravaggi range.
It features a large feed intake that allows shredding of material up to 195mm in diameter. The BIO660 is also equipped with a steel toothed loading chain that assists the operator in feeding the bio-shredder.
In addition to diesel and electric versions, the BIO660 bio-shredder is also available in a tractor PTO version, recommended for use with tractors with 60–80hp to fully exploit its potential.
The BIO660 bio-shredder comes with the following standard equipment:
- Rotor with 75 floating hammers

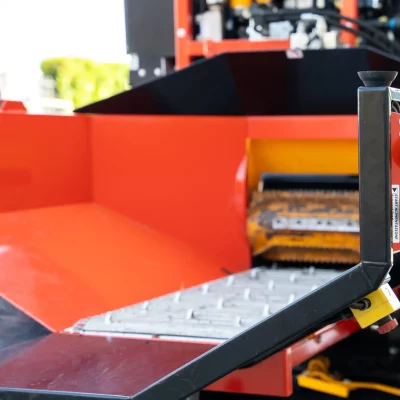

- Steel infeed chain
- Swivelling fifth wheel

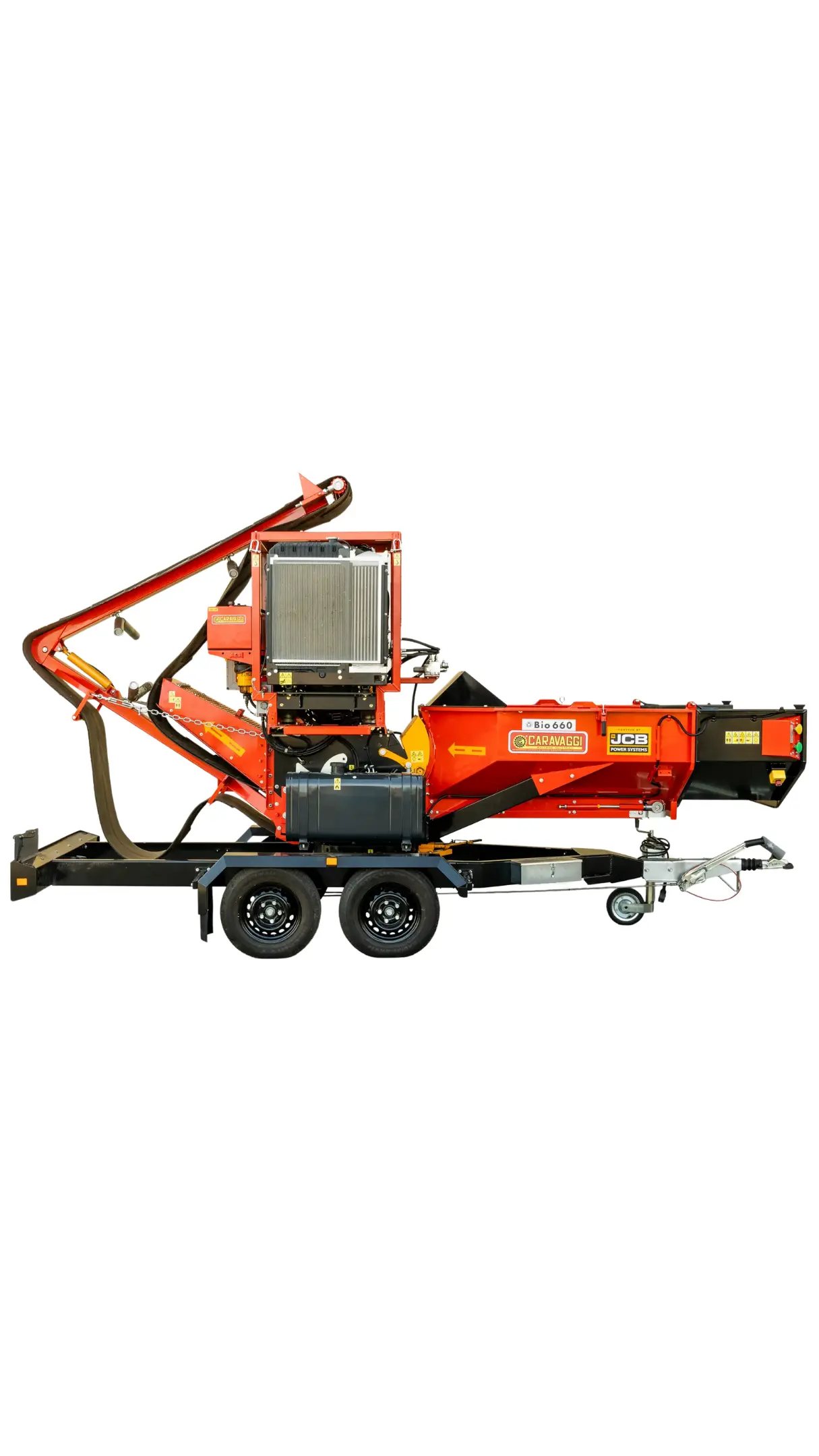

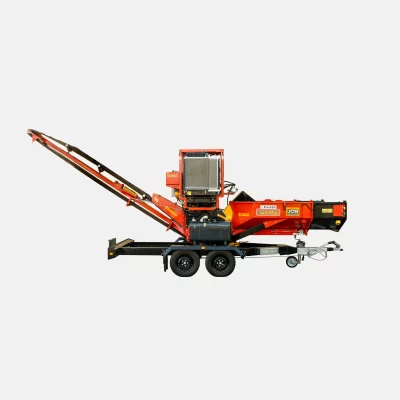

- Agricultural chassis without brakes
- Refining screen
- Rubber discharge conveyor at 2,7m
- Electronic control NO-STRESS

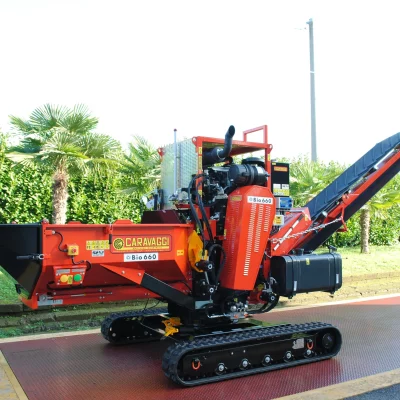

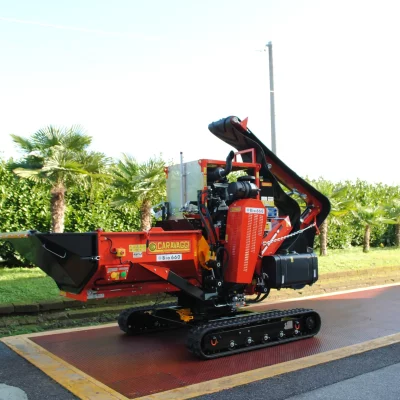

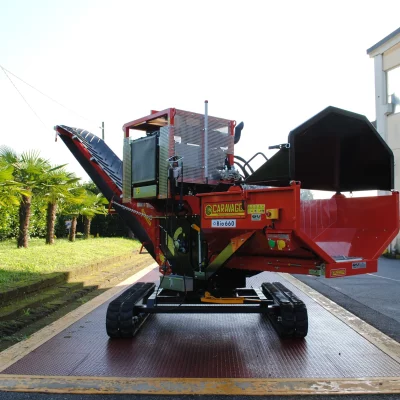

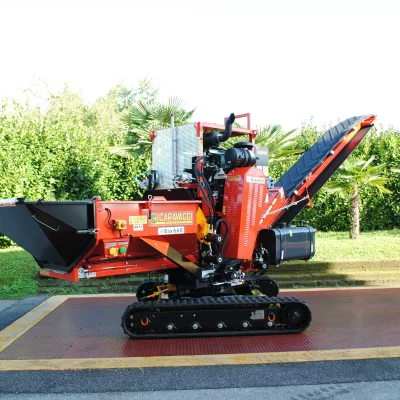

As an alternative, the BIO660 can be supplied with a tracked undercarriage, controlled via wire or remote control.
The main differences compared to the lower model (BIO600) are:
- Increased rotor diameter of 550 mm
- Larger 255 mm feed roller
- Toothed feed chain that improves material drag towards the feeder roller
Download technical data sheet
Technical characteristics
Engine
Diesel FPT F32 – Stage IIIA
75 hp
Diesel FPT F34 – Stage V
75 hp
Diesel KOHLER KDI2504 – Stage V
75 hp
Electric 29 kW
40 hp
PTO tractor 50 – 90 hp
–
Other characteristics
Rotor diameter (mm)
550
Rotor width (mm)
500
Hammers
75
Counter-blades
1
Extractable counterblade
NO
Max cutting diameter (mm)
195

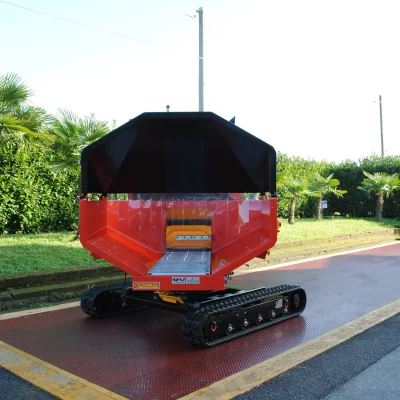

Loading hopper (mm)
1900×1400
Feeding opening (mm)
490×195
Loading height (mm)
1500
Hydraulic feed roller
1
Electronic control NO-STRESS
YES
Roller speed adjustment system
YES

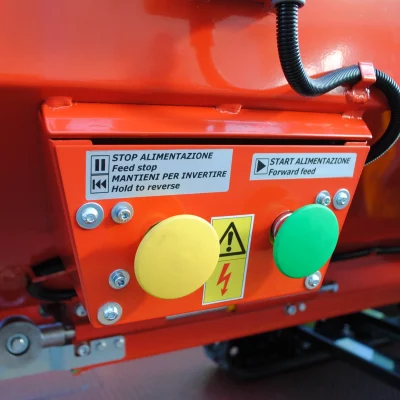

Roller rotation direction control
YES
Centralized greasing
NO
Unloading height (mm)
2700
Average productivity (m3/h)
25
Product pictures
