Bio-shredders and chippers
BIO 60
Bio-shreddersThe BIO60 model is the smallest in the range of domestic bio-shredders.
It features a dual cutting system, consisting of a drum equipped with floating hammers for shredding material and a disc with a blade for wood chipping.
The BIO60 bio-shredder is equipped with an interchangeable refining screen, allowing the operator to adjust the discharge material size and ensure uniformity.
The BIO60 bio-shredder can be supplied with different types of engines, both gasoline and electric:
- Petrol engine HONDA GP160 – 5hp
- Petrol engine HONDA GX160 – 5hp
- Petrol engine HONDA GX200 – 6hp
- Electric motor 220V – 2,2 kW – 3hp
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GP160
5 hp
Petrol HONDA GX160
5 hp
Petrol HONDA GX200
6 hp
Electric 2,2 kW – 220V
3 hp
Other characteristics
Hammers
12
Blades
1
Rotor width (mm)
80
Rotor diameter (mm)
290
Max cutting diameter (mm)
50
Loading hopper (mm)
290×265
Feeding opening (mm)
90×140
Interchangeable refining screen
YES
Hydraulic feed roller
NO
Average productivity (m3/h)
1-2

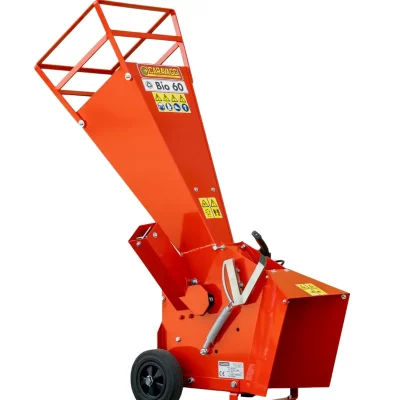

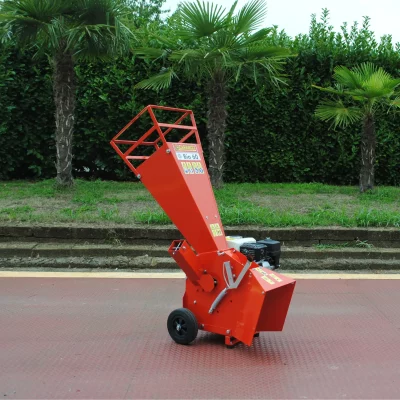

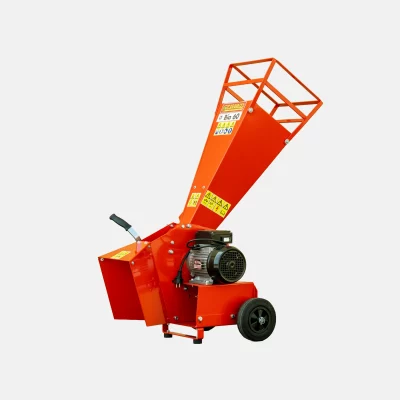

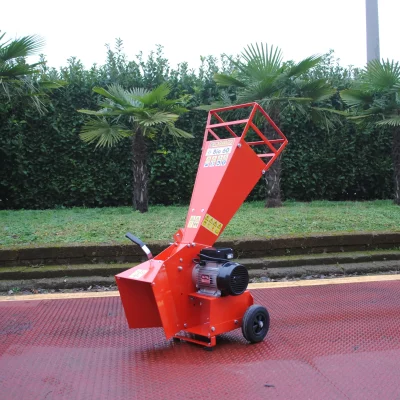

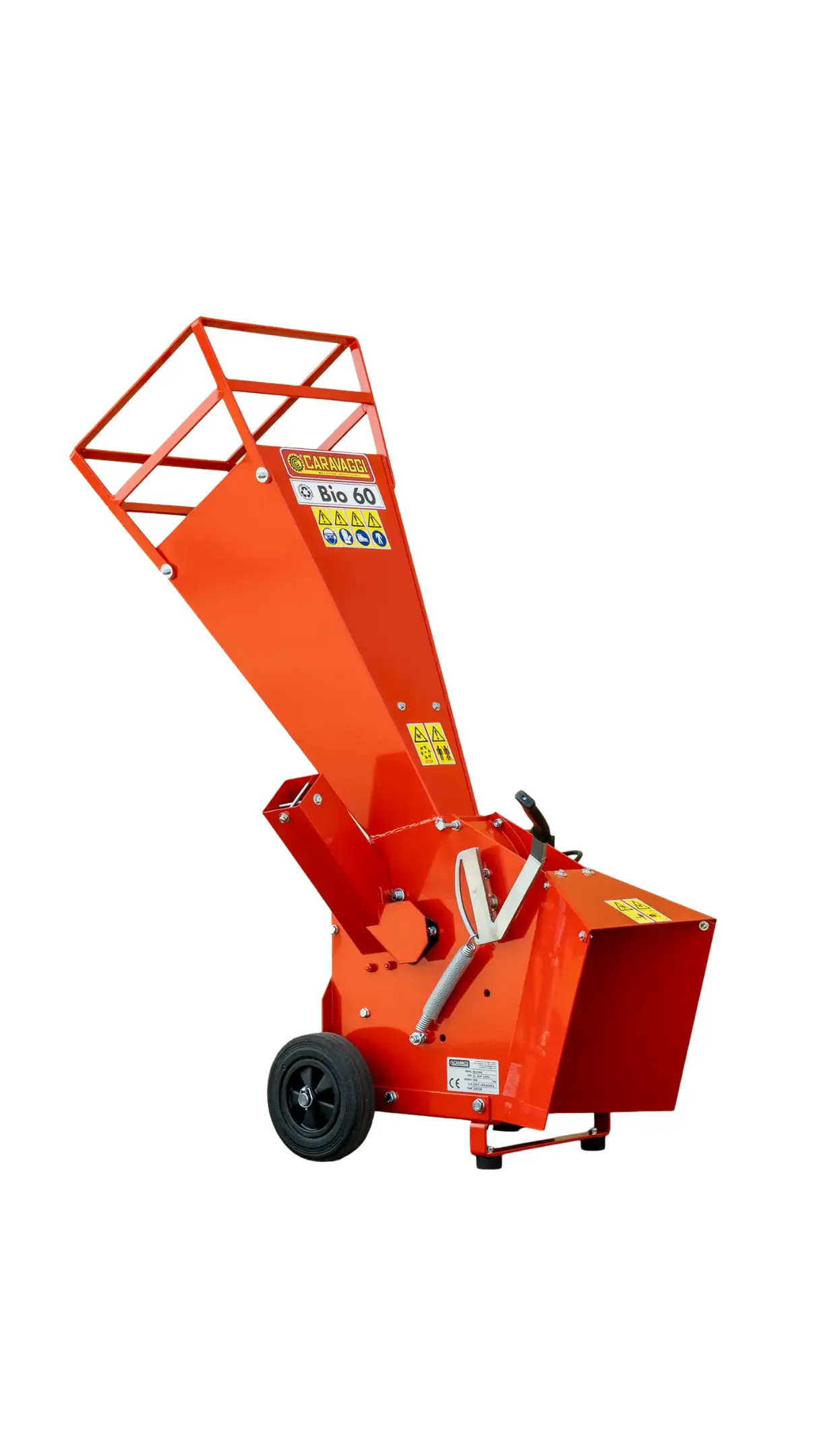

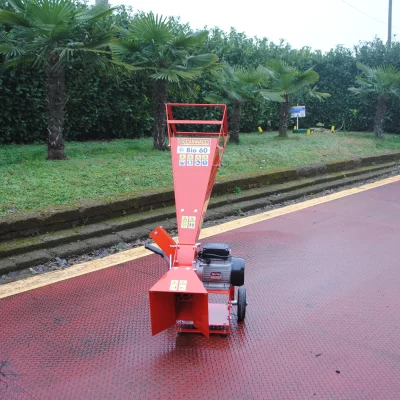

Product pictures
