Bio-shredders and chippers
BIO 50
Bio-shreddersThe BIO50 model is the smallest domestic chipper in the Caravaggi range.
It features a mixed cutting system, consisting of a single-blade cutting disc assisted by 6 hammers that further shred the material and support the discharge.
The BIO50 chipper can be equipped with a screen, allowing the operator to achieve uniform wood chips.

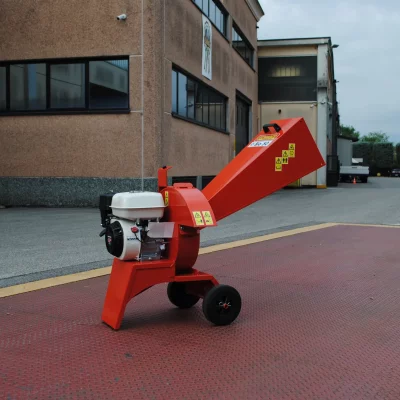

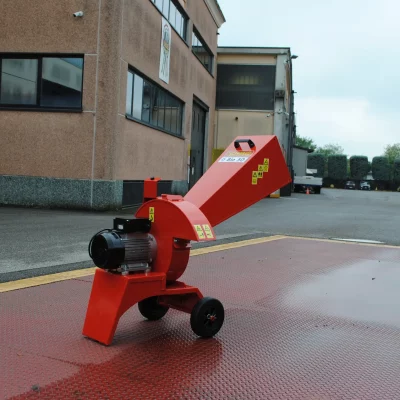

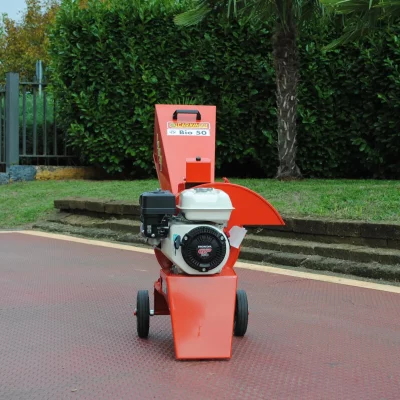

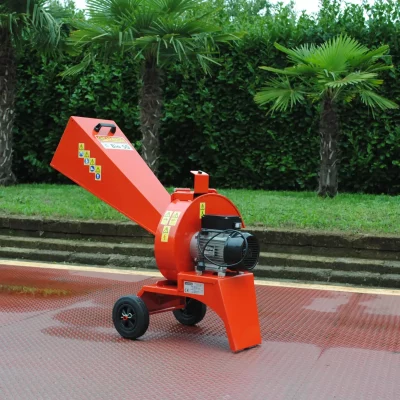

The BIO50 chipper is available with either a 5 HP HONDA GP160 petrol engine or a 220V electric motor with 2,2 kW power.
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GP160
5 hp
Petrol HONDA GX160
5 hp
Petrol HONDA GX200
6 hp
Electric 2,2 kW – 220V
3 hp
Other characteristics
Cutting disc
265×4
Blades
1
Hammers
6
Counterblades
1
Max cutting diameter (mm)
40
Loading hopper (mm)
260×295
Feeding opening (mm)
160×90
Loading height (mm)
790
Hydraulic feed roller
NO
Belt transmission
NO
Screen
YES
Average productivity (m3/h)
1-2
