BIO 300

Bio-shredders

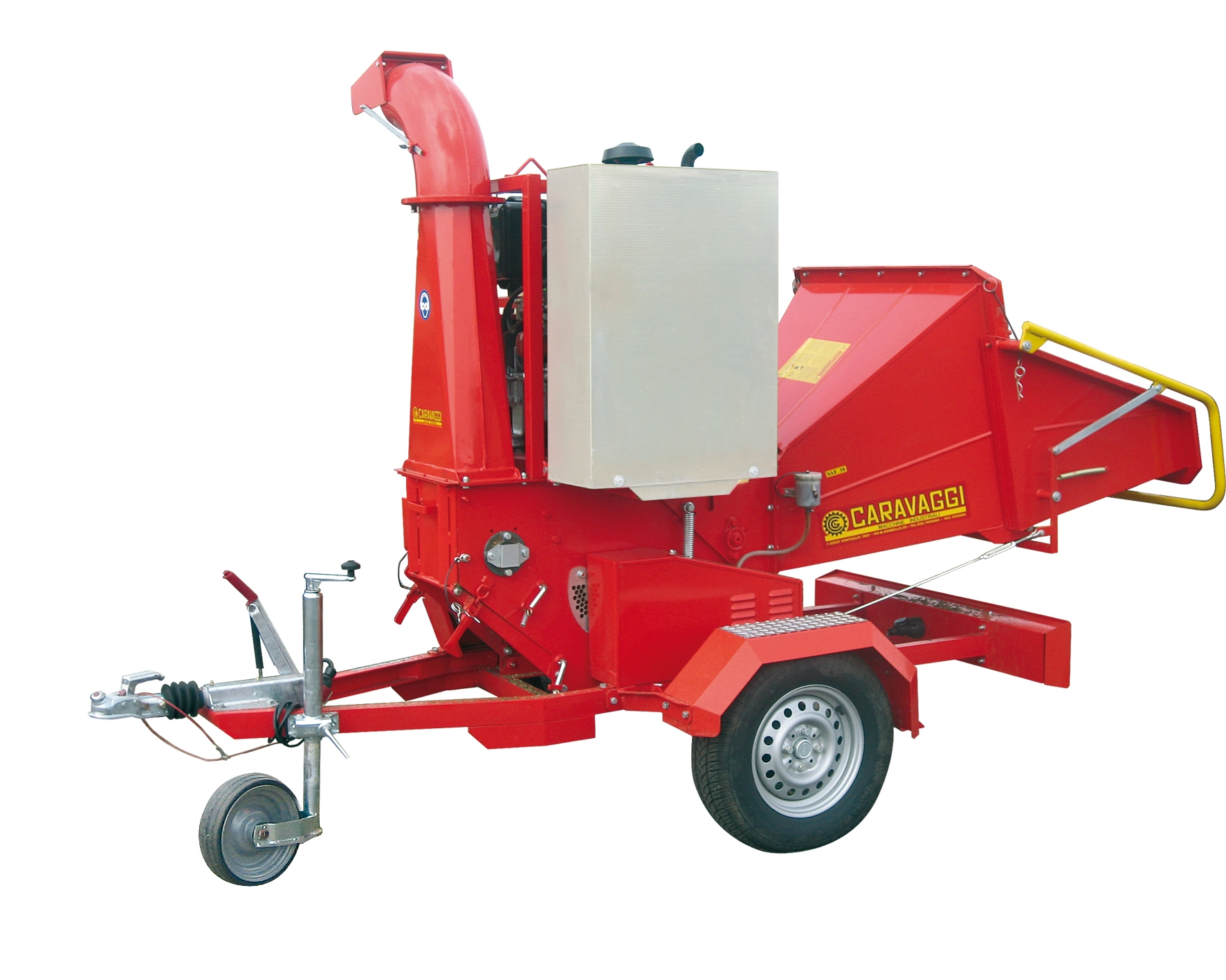

The BIO300 is a professional bio-shredder from the Caravaggi range.

It features a large feed opening that allows shredding of material up to 150mm in diameter. In versions with a homologated high-speed chassis (both petrol and diesel), the BIO300 bio-shredder has a total weight of under 750 kg, allowing it to be towed with a simple B driving license.

All motorized versions of the BIO300 are equipped with engines that comply with the latest emission standards (IE4 – Stage V).

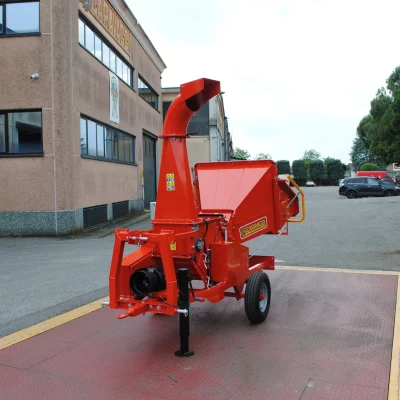

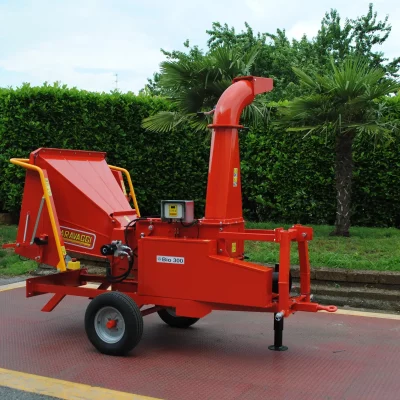

In addition to petrol, electric, and diesel versions, the BIO300 is also available in a tractor PTO version, for which a tractor with 40–70hp is recommended in order to fully exploit the machine’s potential.

The standard equipment of the BIO300 bio-shredder includes:

  • Rotor with 40 floating hammers
  • Feed roller speed control system to adjust wood chip size
  • Agricultural chassis without brakes
  • Refining screen

The BIO300 bio-shredder can also be equipped with the electronic control system NO-STRESS, which prevents overloading of the shredder and the engine, as well as a homologated high-speed chassis.

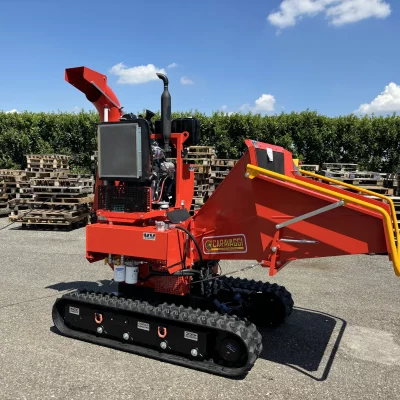

As an alternative, the BIO300 bio-shredder can be supplied with a tracked undercarriage, operated via wire or remote control.

Regarding the cutting system, as an alternative to the standard rotor with 40 floating hammers, the BIO300 can be equipped with a mixed rotor with 6 blades and 24 hammers.

Download technical data sheet

Technical characteristics

Engine
Petrol HONDA GX690

22 hp

Petrol HONDA iGX800

25 hp

Petrol KOHLER ECH980

38 hp

Diesel KOHLER KDW1003

25 hp

Diesel KUBOTA D-1305

25 hp

Electric 18 kW

25 hp

PTO tractor 40 – 70 hp

Other characteristics
Rotor diameter (mm)

460

Rotor width (mm)

300/330

Hammers

40

Counter-blades

1

Extractable counterblade

NO

Max cutting diameter (mm)

150

Loading hopper (mm)

1020×740

Feeding opening (mm)

345×150

Loading height (mm)

940

Hydraulic feed roller

1

Electronic control NO-STRESS

Optional

Roller speed adjustment system

YES

Roller rotation direction control

YES

Centralized greasing

NO

Unloading height (mm)

2200

Average productivity (m3/h)

12

Download brochure

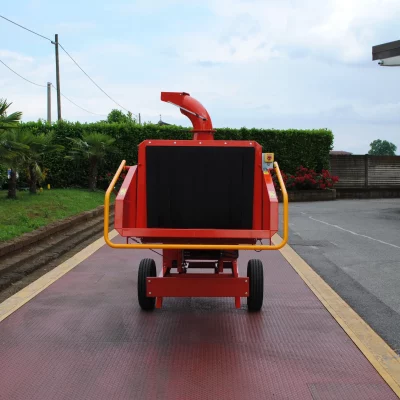

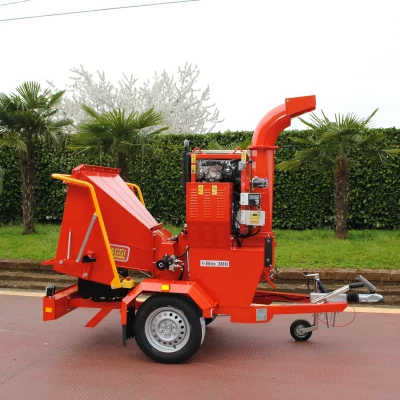

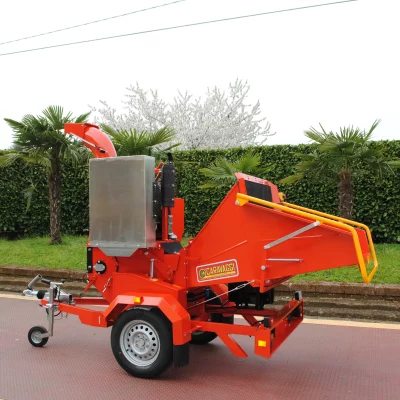

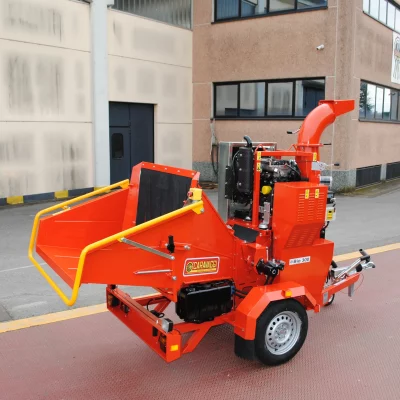

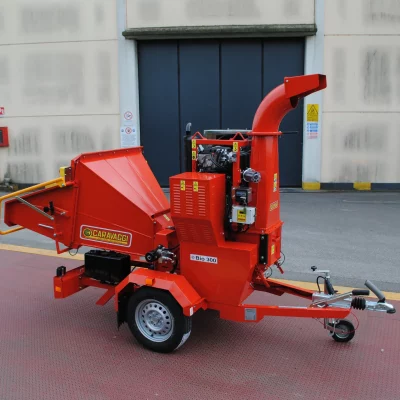

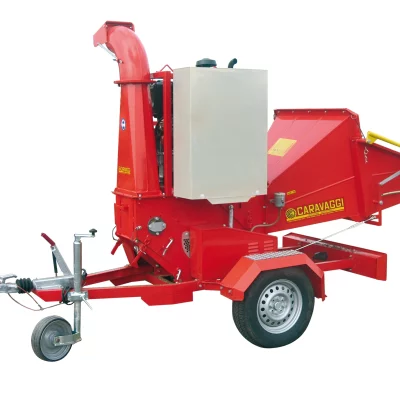

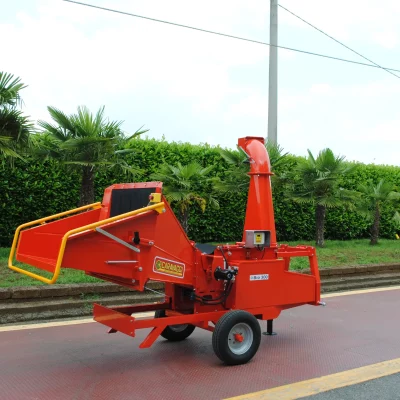

Product pictures
