BIO 230

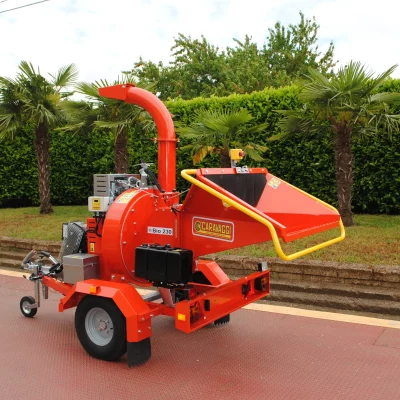

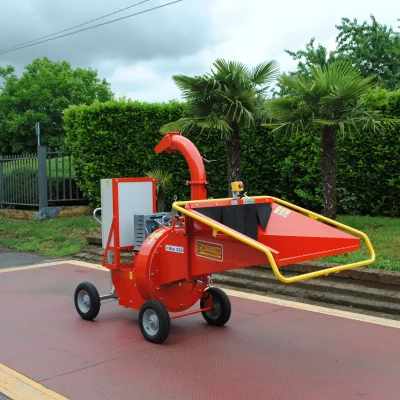

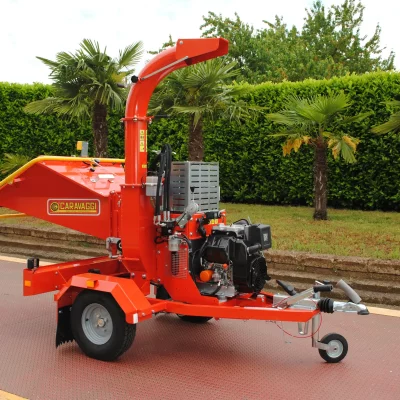

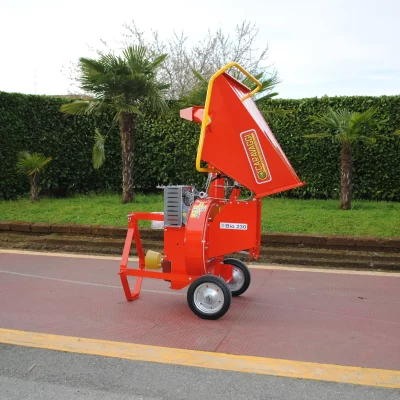

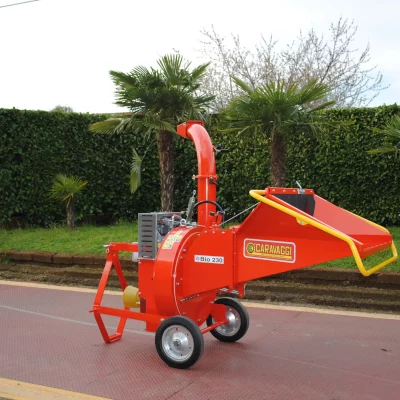

Bio-shreddersThe BIO230 model is a disc chipper from the Caravaggi range.
It features a mixed cutting system consisting of a chipping disc with 3 blades and 24 hammers that further chop the material and it is capable of chipping material up to 130mm in diameter.
The BIO230 can be equipped with various HONDA petrol engines:
- HONDA GX390 11.5hp engine with electric start
HONDA GX630 20hp engine with electric start

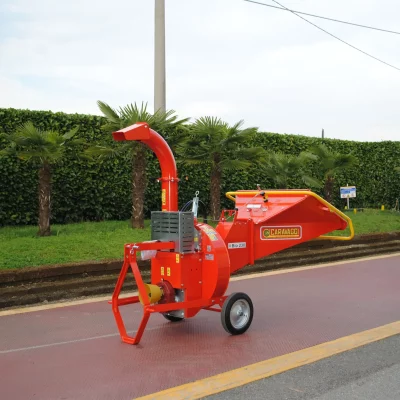

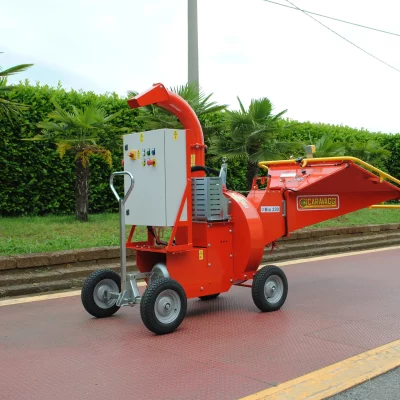

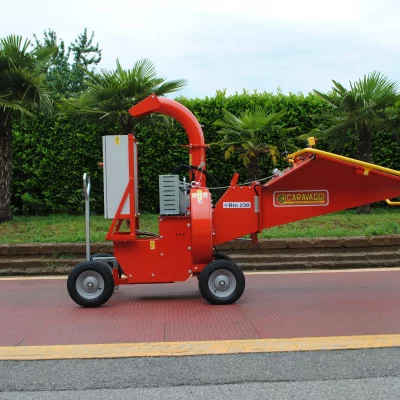

In addition to the petrol versions, the BIO230 is also available in a tractor PTO version (recommended tractor power: 20–50hp to fully utilize its potential) and with a 15 kW three-phase electric motor. For tractors with lower power, a version centrifugal clutch is available.
The BIO230 chipper comes with the following standard equipment:
- Chipping disc with 3 reversible blades + 24 hammers
- Hydraulic feeding roller
- 4-wheel manual chassis with drawbar
The BIO230 model can also be equipped with a refining screen to achieve a more homogeneous output material.

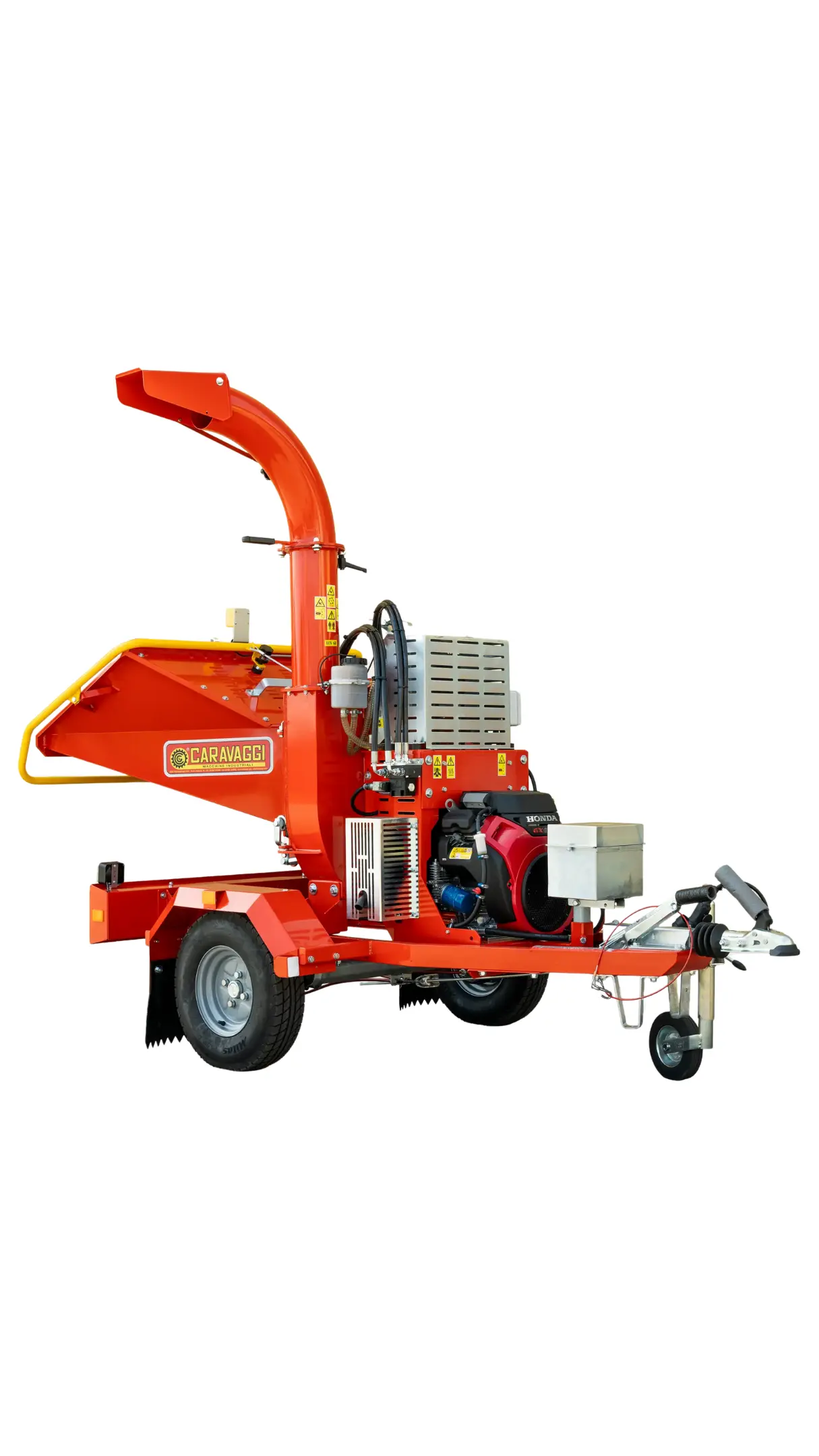

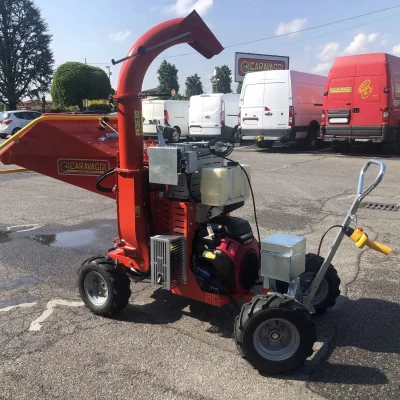

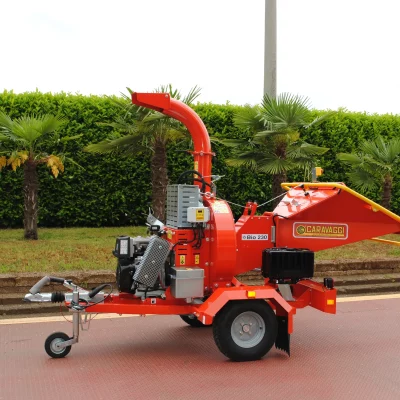

As an alternative, the BIO230 chipper can be supplied with an agricultural chassis without brakes, a homologated high-speed chassis or a tracked undercarriage.
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GX390
11,5 hp
Petrol HONDA GX630
20 hp

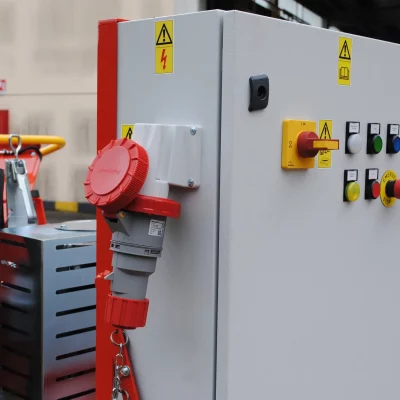

Electric 15 kW – 380 V
20 hp
PTO tractor 20 – 50 hp
–
Other characteristics
Cutting disc (mm)
690×12
Blades
2+1
Hammers
24
Counter-blades
2
Extractable counterblade
NO
Max cutting diameter (mm)
130
Loading hopper (mm)
935×670
Feeding opening (mm)
230×180
Loading height (mm)
1100
Hydraulic feed roller
1
Electronic control NO-STRESS
Optional
Roller speed adjustment system
YES
Roller rotation direction control
YES
Centralized greasing
NO
Unloading height (mm)
2200
Average productivity (m3/h)
10
