Bio-shredders and chippers
BIO 150
Bio-shreddersThe BIO150 model is a bio-shredder suitable for domestic use from the Caravaggi range.
It features a dual cutting system, consisting of a drum equipped with floating hammers for shredding material and a disc with a blade for wood chipping.
The BIO150 bio-shredder is equipped with an interchangeable refining screen, allowing the operator to adjust the size of the discharged material and ensure uniform output.
The BIO150 model is available in various versions:
- Petrol engine HONDA GX390 – 11,5hp
- Electric motor – 7,5 kW
- For two-wheel tractor with a power range of approx. 10 – 16hp
- For tractor PTO (power take-off) with a power range of approx. 20 – 30 hp
In the motorized versions, the BIO150 can be supplied with a 4-wheel manual chassis with a drawbar, to facilitate moving the bio-shredder.
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GX390
8,5 hp
Electric 7,5 kW – 380V
–
Two-wheel tractor 10 - 16hp
–
Tractor PTO 20-30hp
7,5 hp
Other characteristics
Hammers
36
Blades
1
Rotor width (mm)
210
Rotor diameter (mm)
350
Max cutting diameter (mm)
70-80
Loading hopper (mm)
530×450
Feeding opening (mm)
230×170
Interchangeable refining screen
YES
Hydraulic feed roller
NO
Average productivity (m3/h)
3

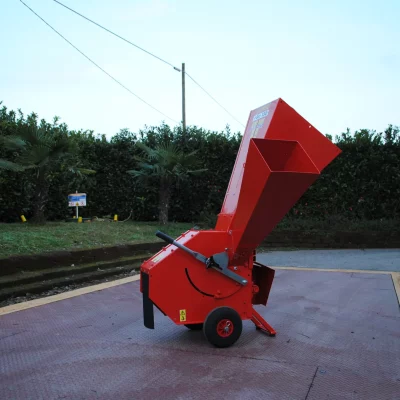

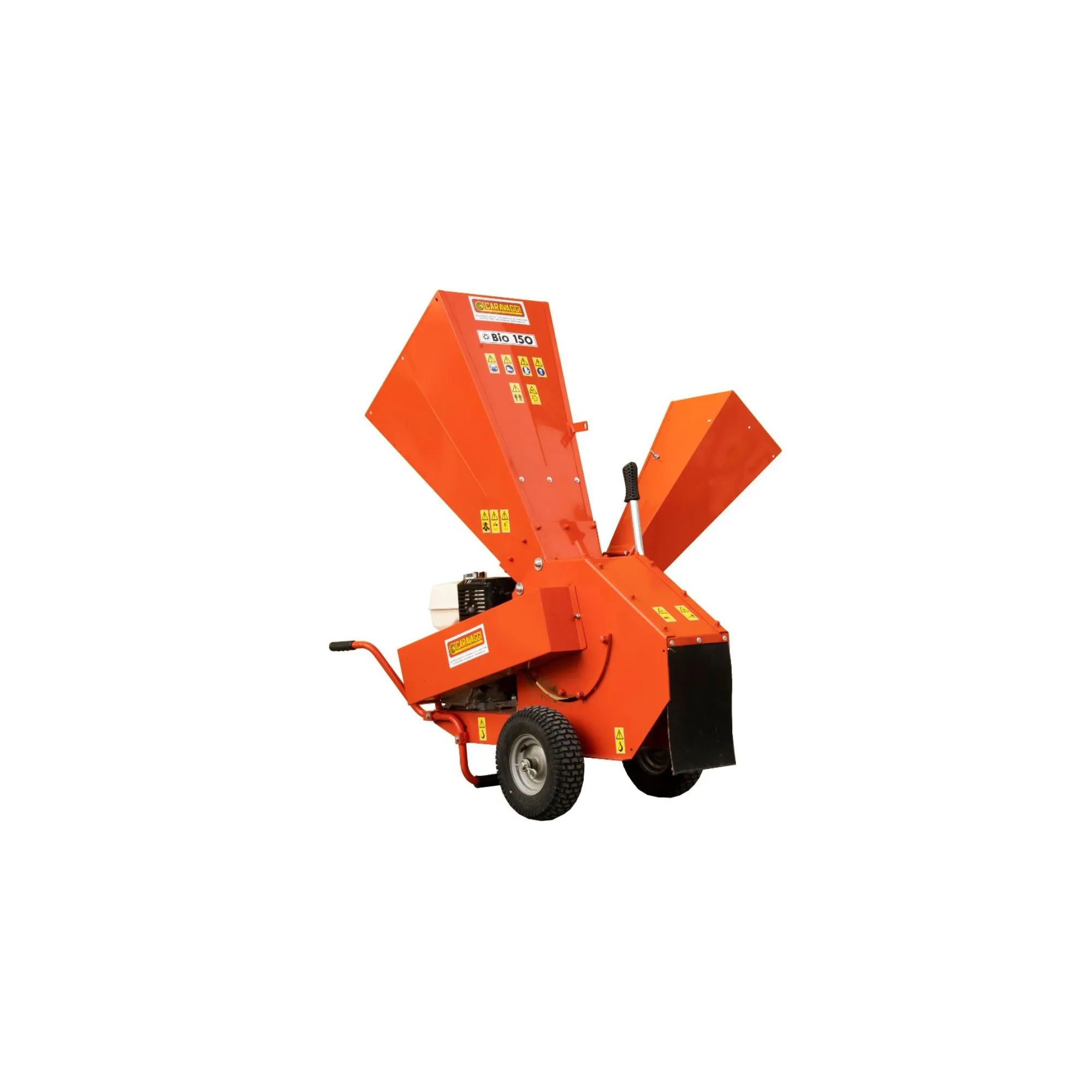

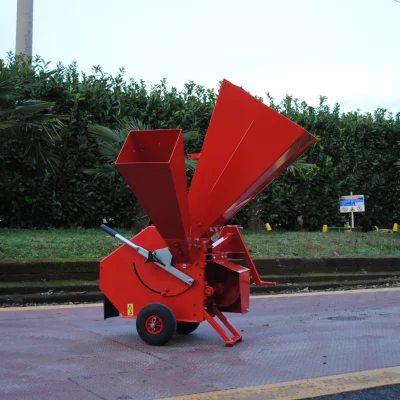

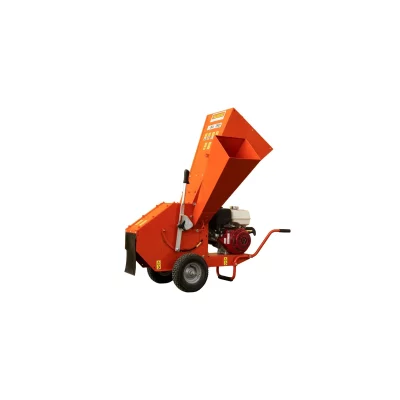

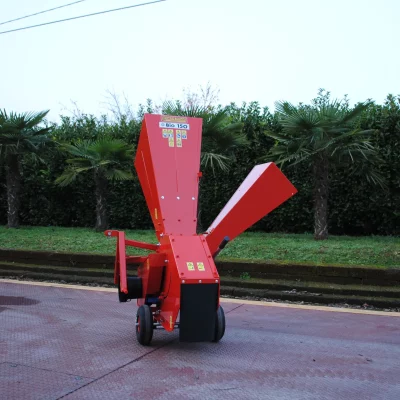

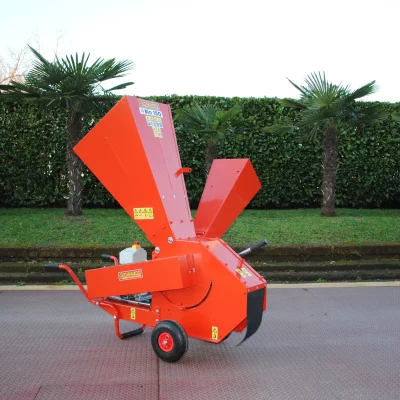

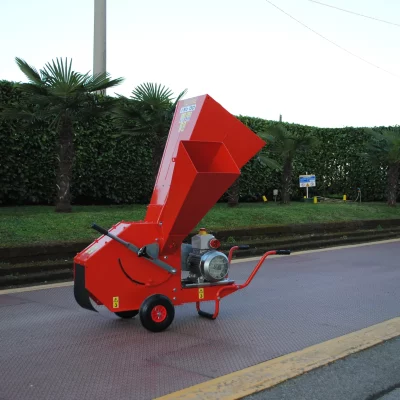

Product pictures
