Bio-shredders and chippers
BIO 100

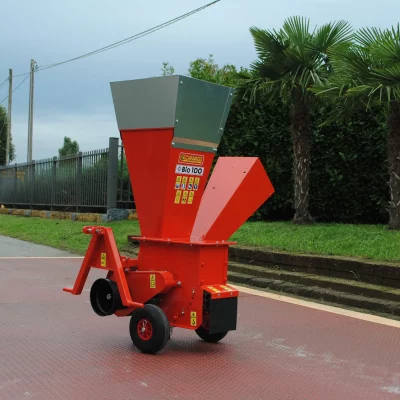

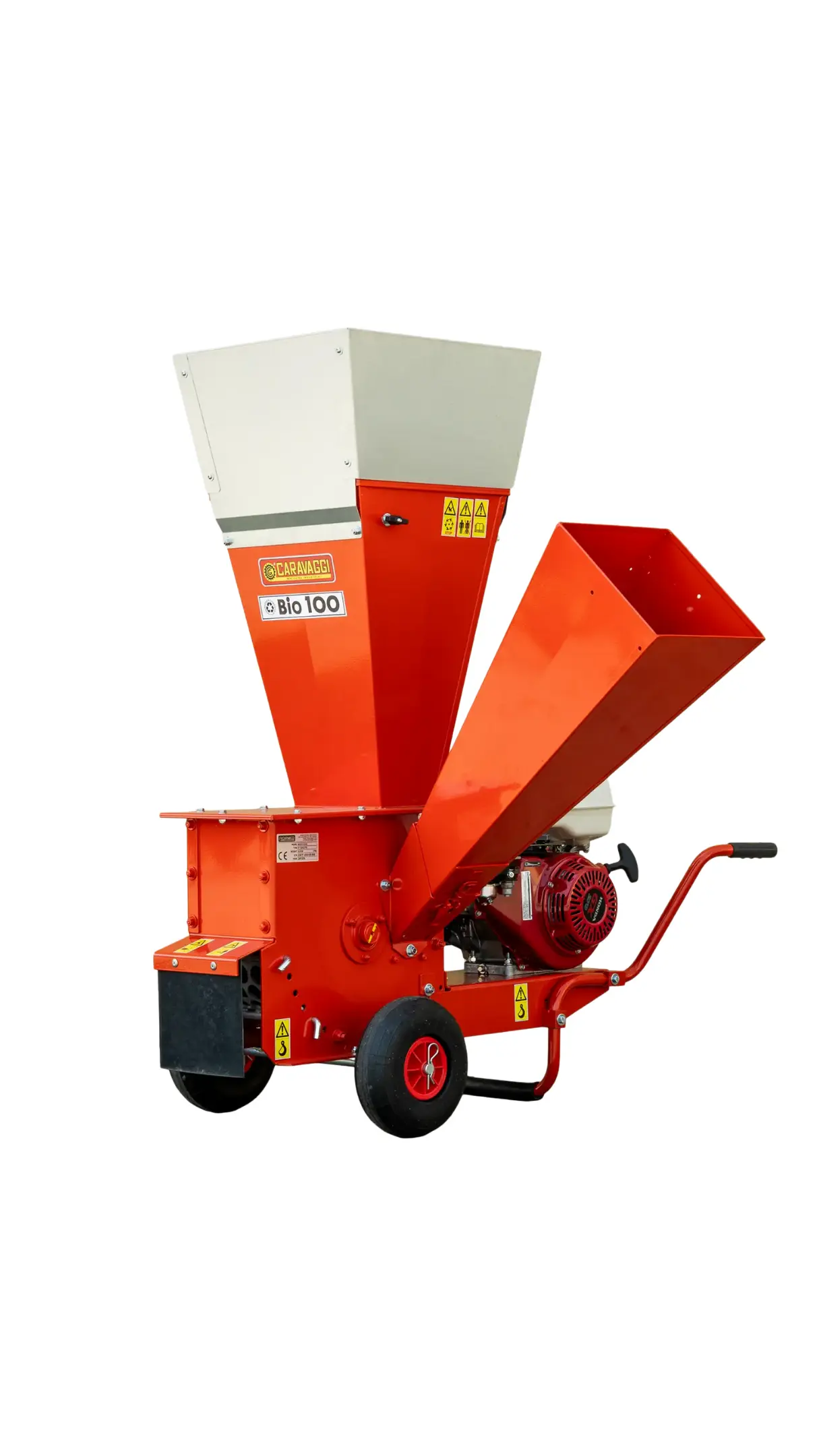

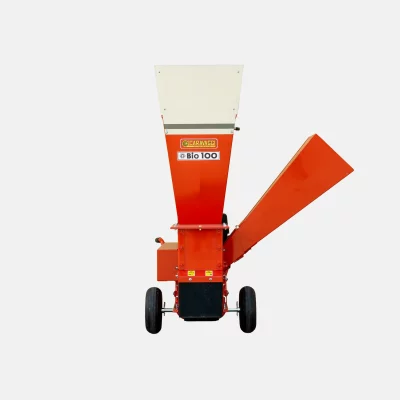

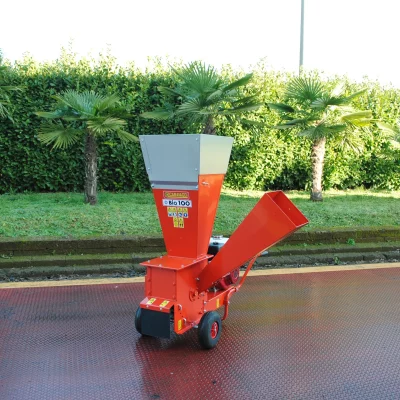

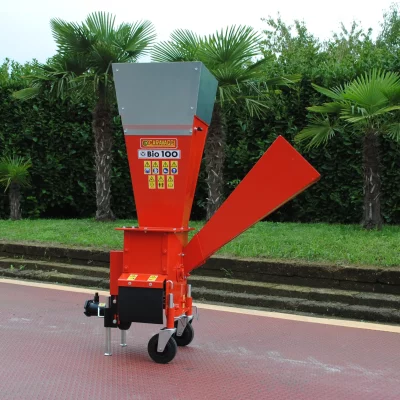

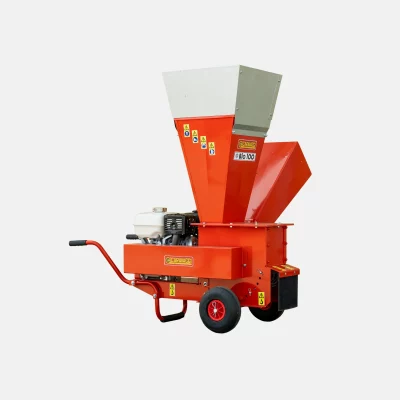

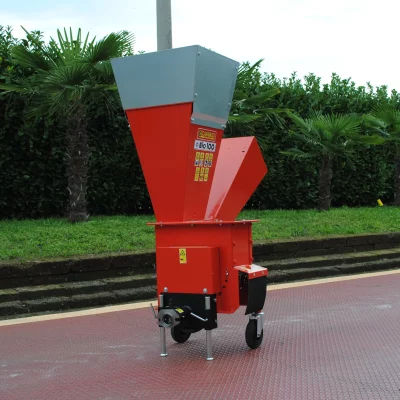

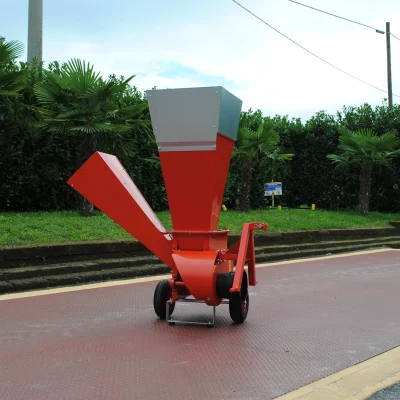

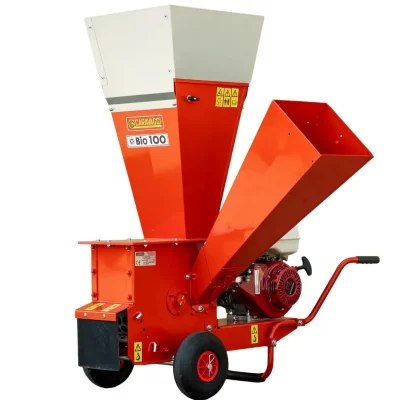

Bio-shreddersThe BIO100 model is a bio-shredder suitable for domestic use from the Caravaggi range.
It features a dual cutting system, consisting of a drum equipped with floating hammers for shredding material and a disc with a blade for wood chipping.
The BIO100 shredder is equipped with an interchangeable refining screen, allowing the operator to adjust the discharge material size and ensure uniform output.
The BIO100 model is available in various versions:
- Petrol engine HONDA GX270 – 8,5hp
- Electric motor – 5,5 kW or 7,5 kW

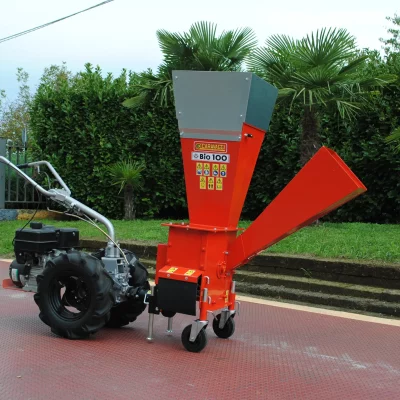

- For two-wheel tractor with a power range of approx. 8 – 12hp
- For tractor PTO (power take-off) with a power range of approx. 15 – 25hp
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GX270
8,5 hp
Two-wheel tractor 8-12hp
–
Tractor PTO 15-25hp
–
Electric 5,5 kW – 380V
7,5 hp
Electric 7,5 kW – 380V
10 hp
Other characteristics
Hammers
28
Blades
1
Rotor width (mm)
210
Rotor diameter (mm)
350
Max cutting diameter (mm)
70-80
Loading hopper (mm)
300×300
Feeding opening (mm)
180×160
Interchangeable refining screen
YES
Hydraulic feed roller
NO
Average productivity (m3/h)
2

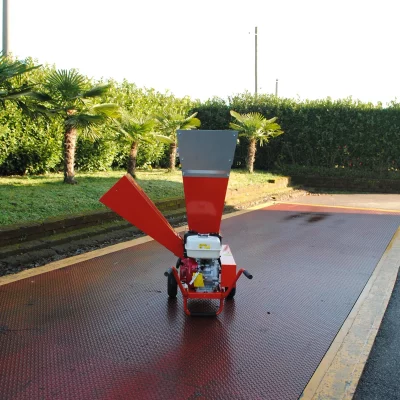

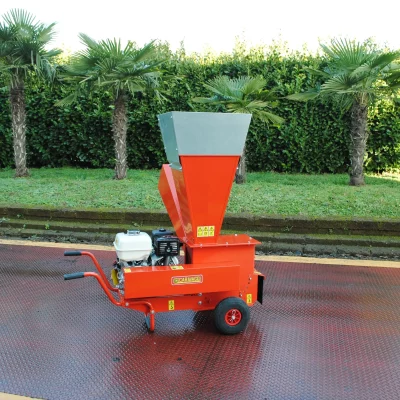

Product pictures
