Scarifiers
ARIO 40

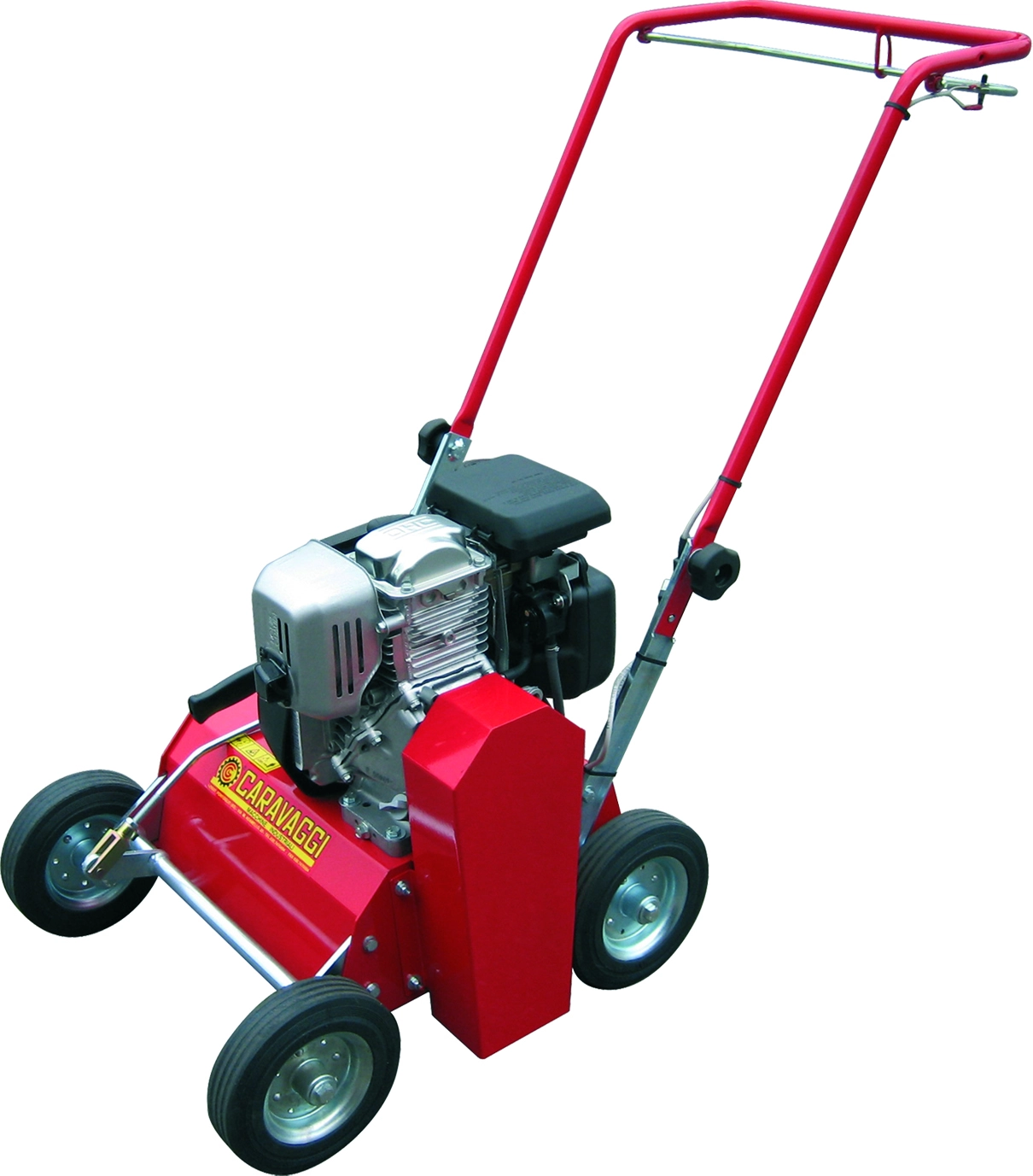

ScarifiersThe ARIO40 model is the smallest scarifier in the Caravaggi range.
It is a machine designed for lawn maintenance, removing anything that hinders proper oxygenation and the filtration of water and fertilizers into the soil, such as small roots and moss, thereby ensuring healthy grass growth.
The aeration system of the ARIO40 consists of a central rotor that can be equipped with fixed blades, mobile blades or springs depending on the user’s needs. The ability to adjust the aeration depth via a dedicated adjustment lever allows the machine to be used effectively in a wide variety of conditions, delivering optimal results.
The ARIO40 scarifier can be supplied with two HONDA engine options:
- Petrol engine HONDA GP160 – 5hp
- Petrol engine HONDA GX160 – 5hp
Download technical data sheet
Technical characteristics
Engine
Petrol HONDA GP160
5 hp
Petrol HONDA GX160
5 hp
Version with mobile blades
Rotor diameter (mm)
195
Working width (mm)
400
Blades
12
Version with fixed blades
Rotor diameter (mm)
190
Working width (mm)
400
Blades
28
Version with springs
Rotor diameter (mm)
170
Working width (mm)
400
Blades
28
Dimensions
Length (mm)
1200
Width (mm)
580
Height (mm)
950
Weight (kg)
50
